HYDRAULIC R5 One Wire Braid-Textile Cover Hose(SAE 100 R5)
  • Air ProHYDRAULIC R5 One Wire Braid-Textile Cover Hose(SAE 100 R5)

HYDRAULIC R5 One Wire Braid-Textile Cover Hose(SAE 100 R5)

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials:stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC R5 One Wire Braid-Textile Cover Hose(SAE 100 R5)

Model:R5

Send Inquiry

Product Description

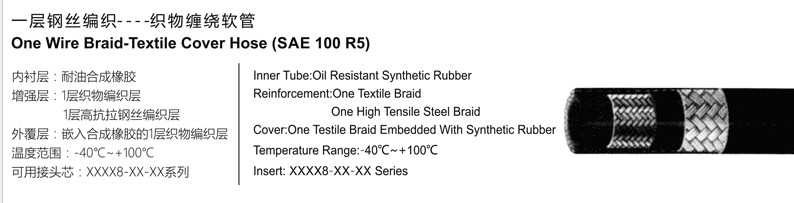

HYDRAULIC R5 One Wire Braid-Textile Cover Hose(SAE 100 R5)



 HOSE PART NO.  HOSE SIZE  HOSE I.D. HOSEO.D. MIN.BURST PRESSURE  MAX W.P. MIN.BEND. RAD. FERRULE
DASH in mm mm MPa MPa mm
R504 -04 3/16 4.8 13.2 84.0 21.0 76 00518-04
R505 -05 1/4 6.4 14.8 84.0 21.0 86 00518-05
R506 -06 5/16 7.9 17.3 62.0 15.5 102 00518-06
R508 -08 13/32 10.3 19.5 56.0 14.0 117 00518-08
R510 -10 1/2 12.7 23.4 48.4 12.1 140 00518-10
R512 -12 5/8 15.9 27.4 41.2 10.3 165 00518-12
R516 -16 7/8 22.2 31.4 22.0 5.5 187 00518-16
R520 -20 1.1/8 28.6 38.1 17.2 4.3 229 00518-20
R524 -24 1.3/8 34.9 44.5 13.6 3.4 267 00518-24
R532 -32 1.13/16 46.0 56.4 9.6 2.4 337 00518-32
