HYDRAULIC 4SP Wire Spiral Hose(GB/T 10544 4SP-EN 856 4SP)

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials:stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 4SP Wire Spiral Hose(GB/T 10544 4SP-EN 856 4SP)

Model:4SP

Send Inquiry

Product Description

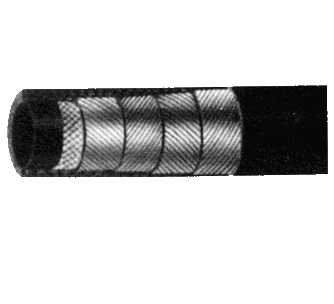

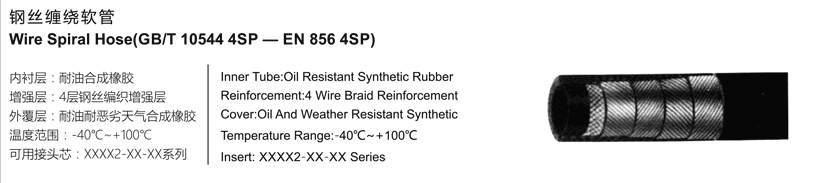

HYDRAULIC 4SP Wire Spiral Hose(GB/T 10544 4SP-EN 856 4SP)



 HOSE PART NO.  DN  HOSESIZE  HOSE I.D. HOSEO.D. MIN.BURST PRESSURE  MAX W.P. MIN.BEND. RAD. FERRULE
mm DASH in mm mm MPa MPa mm
4SP04 6 -04 1/4 6.4 17.9 180 45.0 150 00400-04
4SP06 10 -06 3/8 9.5 21.4 178 44.5 180 00400-06
4SP08 12 -08 1/2 12.7 24.6 166 41.5 230 00400-08
4SP10 16 -10 5/8 15.9 28.2 140 35.0 250 00400-10
4SP12 20 -12 3/4 19.0 32.2 140 35.0 300 00400-12
4SP16 25 -16 1 25.4 39.7 112 28.0 340 00400-16
4SP20 32 -20 1.1/4 31.8 50.8 84 21.0 460 00400-20
4SP24 40 -24 1.1/2 38.1 57.2 74 18.5 560 00400-24
4SP32 50 -32 2 50.8 69.8 66 16.5 660 00400-32
