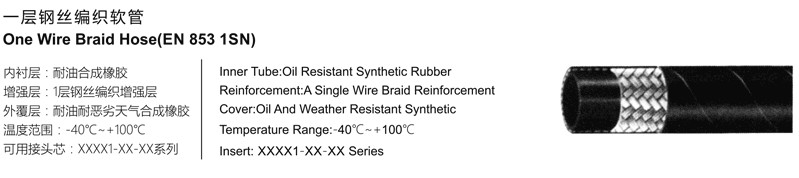

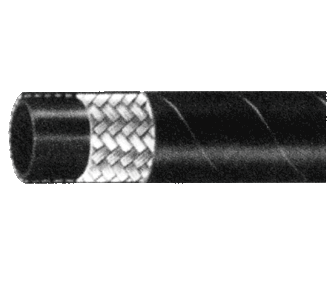

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 1SN One Wire Braid Hose(EN 853 1SN)
| HOSE PART NO. | DN | HOSE SIZE | HOSE I.D. | HOSEO.D. | MIN.BURST PRESSURE | MAX W.P. | MIN.BEND. RAD. | FERRULE | |
| mm | DASH | in | mm | mm | MPa | MPa | mm | ||
| 1SN03 | 5 | -03 | 3/16 | 4.8 | 11.8 | 100 | 25.0 | 90 | 00110-03A |
| 1SN04 | 6 | -04 | 1/4 | 6.4 | 13.4 | 90 | 22.5 | 100 | 00110-04A |
| 1SN05 | 8 | -05 | 5/16 | 7.9 | 15.0 | 85 | 21.5 | 115 | 00110-05A |
| 1SN06 | 10 | -06 | 3/8 | 9.5 | 17.4 | 72 | 18.0 | 130 | 00110-06A |
| 1SN08 | 12 | -08 | 1/2 | 12.7 | 20.6 | 64 | 16.0 | 180 | 00110-08A |
| 1SN10 | 16 | -10 | 5/8 | 15.9 | 23.7 | 52 | 13.0 | 200 | 00110-10A |
| 1SN12 | 20 | -12 | 3/4 | 19.0 | 27.7 | 42 | 10.5 | 240 | 00110-12A |
| 1SN16 | 25 | -16 | 1 | 25.4 | 35.6 | 35 | 8.8 | 300 | 00110-16A |
| 1SN20 | 32 | -20 | 1.1/4 | 31.8 | 43.5 | 25 | 6.3 | 420 | 00110-20 |
| 1SN24 | 40 | -24 | 1.1/2 | 38.1 | 50.6 | 20 | 5.0 | 500 | 00110-24 |
| 1SN32 | 50 | -32 | 2 | 50.8 | 64.0 | 16 | 4.0 | 630 | 00110-32 |
HYDRAULIC 1T One Wire Braid Hose(SAE 100 R1AT)
HYDRAULIC 2T Two Wire Braid Hose(SAE 100 R2AT)
HYDRAULIC 2SN Two Wire Braid Hose(EN 853 2SN)
HYDRAULIC R12 Wire Spiral Hose(GB/T 10544 R12-SAE 100 R12-EN 856 R12)
HYDRAULIC 4SP Wire Spiral Hose(GB/T 10544 4SP-EN 856 4SP)
HYDRAULIC 4SH Wire Spiral Hose(GB/T 10544 4SH-EN 856 4SH)
