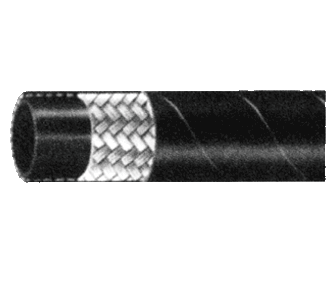

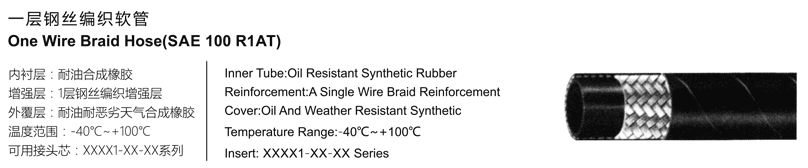

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 1T One Wire Braid Hose(SAE 100 R1AT)
| HOSE PART NO. | DN | HOSE SIZE | HOSE I.D. | HOSEO.D. | MIN.BURST PRESSURE | MAX W.P. | MIN.BEND. RAD. | FERRULE | |
| mm | DASH | in | mm | mm | MPa | MPa | mm | ||
| 1T03 | 5 | -03 | 3/16 | 4.8 | 11.8 | 82.7 | 20.7 | 89 | 00110-03A |
| 1T04 | 6 | -04 | 1/4 | 6.4 | 13.4 | 75.8 | 19.0 | 102 | 00110-04A |
| 1T05 | 8 | -05 | 5/16 | 7.9 | 15.0 | 68.9 | 17.2 | 114 | 00110-05A |
| 1T06 | 10 | -06 | 3/8 | 9.5 | 17.4 | 62.0 | 15.5 | 127 | 00110-06A |
| 1T08 | 12 | -08 | 1/2 | 12.7 | 20.6 | 55.2 | 13.8 | 178 | 00110-08A |
| 1T10 | 16 | -10 | 5/8 | 15.9 | 23.7 | 41.4 | 10.3 | 203 | 00110-10A |
| 1T12 | 20 | -12 | 3/4 | 19.0 | 27.7 | 34.5 | 8.6 | 241 | 00110-12A |
| 1T16 | 25 | -16 | 1 | 25.4 | 35.6 | 27.6 | 6.9 | 305 | 00110-16A |
| 1T20 | 32 | -20 | 1.1/4 | 31.8 | 43.5 | 17.2 | 4.3 | 419 | 00110-20 |
| 1T24 | 40 | -24 | 1.1/2 | 38.1 | 50.6 | 13.8 | 3.4 | 508 | 00110-24 |
| 1T32 | 50 | -32 | 2 | 50.8 | 64.0 | 10.3 | 2.6 | 635 | 00110-32 |
HYDRAULIC 1SN One Wire Braid Hose(EN 853 1SN)
HYDRAULIC 2T Two Wire Braid Hose(SAE 100 R2AT)
HYDRAULIC 2SN Two Wire Braid Hose(EN 853 2SN)
HYDRAULIC R12 Wire Spiral Hose(GB/T 10544 R12-SAE 100 R12-EN 856 R12)
HYDRAULIC 4SP Wire Spiral Hose(GB/T 10544 4SP-EN 856 4SP)
HYDRAULIC 4SH Wire Spiral Hose(GB/T 10544 4SH-EN 856 4SH)
