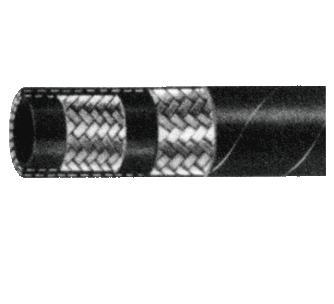

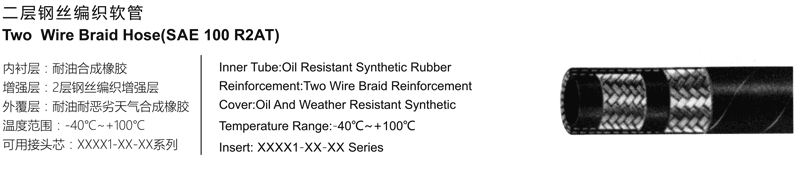

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 2T Two Wire Braid Hose(SAE 100 R2AT)
| HOSE PART NO. | DN | HOSE SIZE | HOSE I.D. | HOSEO.D. | MIN.BURST PRESSURE | MAX W.P. | MIN.BEND. RAD. | FERRULE | |
| mm | DASH | in | mm | mm | MPa | MPa | mm | ||
| 2T03 | 5 | -03 | 3/16 | 4.8 | 13.4 | 137.9 | 34.5 | 89 | 03310-03 |
| 2T04 | 6 | -04 | 1/4 | 6.4 | 15.0 | 137.9 | 34.5 | 102 | 03310-04 |
| 2T05 | 8 | -05 | 5/16 | 7.9 | 16.7 | 117.2 | 29.3 | 114 | 03310-05 |
| 2T06 | 10 | -06 | 3/8 | 9.5 | 19.1 | 110.3 | 27.6 | 127 | 03310-06 |
| 2T08 | 12 | -08 | 1/2 | 12.7 | 22.2 | 96.5 | 24.1 | 178 | 03310-08 |
| 2T10 | 16 | -10 | 5/8 | 15.9 | 25.4 | 75.8 | 19.0 | 203 | 03310-10 |
| 2T12 | 20 | -12 | 3/4 | 19.0 | 29.3 | 62.0 | 15.5 | 241 | 03310-12 |
| 2T16 | 25 | -16 | 1 | 25.4 | 38.1 | 55.2 | 13.8 | 305 | 03310-16 |
| 2T20 | 32 | -20 | 1.1/4 | 31.8 | 48.3 | 44.8 | 11.2 | 419 | 00200-20 |
| 2T24 | 40 | -24 | 1.1/2 | 38.1 | 54.6 | 34.5 | 8.6 | 508 | 00200-24 |
| 2T32 | 50 | -32 | 2 | 50.8 | 67.4 | 31.0 | 7.8 | 635 | 00200-32 |
