HYDRAULIC 26711D-RW JIC FEMALE 74° CONE SEAT DOUBLE HEXAGON SAE J514
  • Air ProHYDRAULIC 26711D-RW JIC FEMALE 74° CONE SEAT DOUBLE HEXAGON SAE J514

HYDRAULIC 26711D-RW JIC FEMALE 74° CONE SEAT DOUBLE HEXAGON SAE J514

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials:stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 26711D-RW JIC FEMALE 74° CONE SEAT DOUBLE HEXAGON SAE J514

Model:26711D-RW

Send Inquiry

Product Description

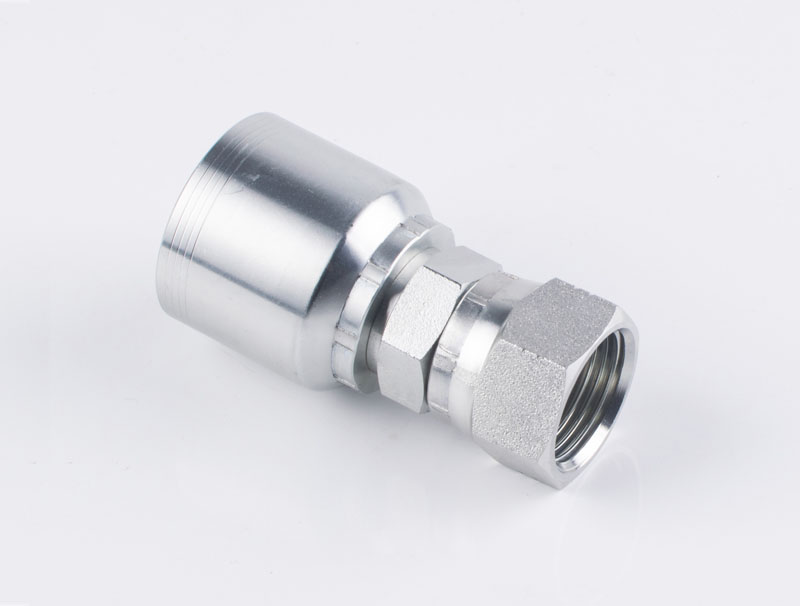

HYDRAULIC 26711D-RW JIC FEMALE 74° CONE SEAT DOUBLE HEXAGON SAE J514

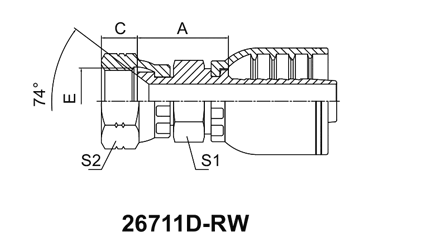

 PART NO.  THREADE  HOSE BORE DIMENSIONS
DN DASH A C S1 S2
26711D-04-04RW 7/16"X20 6 04 20 9 12 15
26711D-05-04RW 1/2"X20 6 04 20.5 9.5 12 17
26711D-06-04RW 9/16"X18 6 04 21 10.5 14 19
26711D-06-06RW 9/16"X18 10 06 21 10.5 17 19
26711D-08-06RW 3/4"X16 10 06 23 11 19 24
26711D-08-08RW 3/4"X16 12 08 24.5 11 22 24
26711D-08-10RW 3/4-X16 16 10 25.5 11 22 24
26711D-10-08RW 7/8"X14 12 08 24 13 22 27
26711D-10-1ORW 7/8"X14 16 10 27 13 22 27
26711D-12-12RW 1.1/16"X12 20 12 31.5 15 27 32
26711 D-16-12RW 1.5/16"X12 20 12 31.5 16 32 41
26711 D-16-16RW 1.5/16"X12 25 16 32.5 16 32 41
26711D-20-20RW 1.7/16"X12 32 20 37 17 41 50

NOTE:

1. For use with braided hoses.

2. If with spiral hoses,hose fitting series number is 26712D-XX-XXRW.
