HYDRAULIC 21611D-RW NPSM FEMALE60°CONE DOUBLE HEXAGON
  • Air ProHYDRAULIC 21611D-RW NPSM FEMALE60°CONE DOUBLE HEXAGON

HYDRAULIC 21611D-RW NPSM FEMALE60°CONE DOUBLE HEXAGON

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials:stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 21611D-RW NPSM FEMALE60°CONE DOUBLE HEXAGON

Model:21611D-RW

Send Inquiry

Product Description

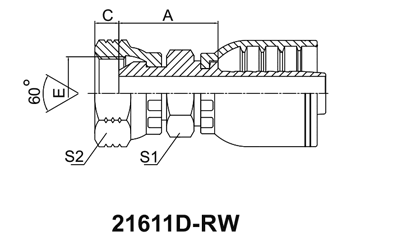

HYDRAULIC 21611D-RW NPSM FEMALE60°CONE DOUBLE HEXAGON


  PART NO.  THREAD E HOSE BORE DIMENSIONS
 DN DASHACS1S2
21611D-04-04RW1/4"X19 NPSM604235.51419
21611D-06-06RW3/8"X19 NPSM1006256.31722
21611D-08-08RW1/2"X14 NPSM120828.57.52227
21611D-10-08RW5/8"X14 NPSM1208309.52230
21611D-12-08RW3/4"X14 NPSM120832.110.92732
21611D-12-12RW3/4"X14 NPSM201232.510.92732
21611D-16-16RW1"X11 NPSM251636.311.73241
21611D-20-20RW1.1/4"X11 NPSM322041.5114150

NOTE:

1.For use with braided hoses.

2.If with spiral hoses,hose fitting series number is 21612D-XX-XXRW.
