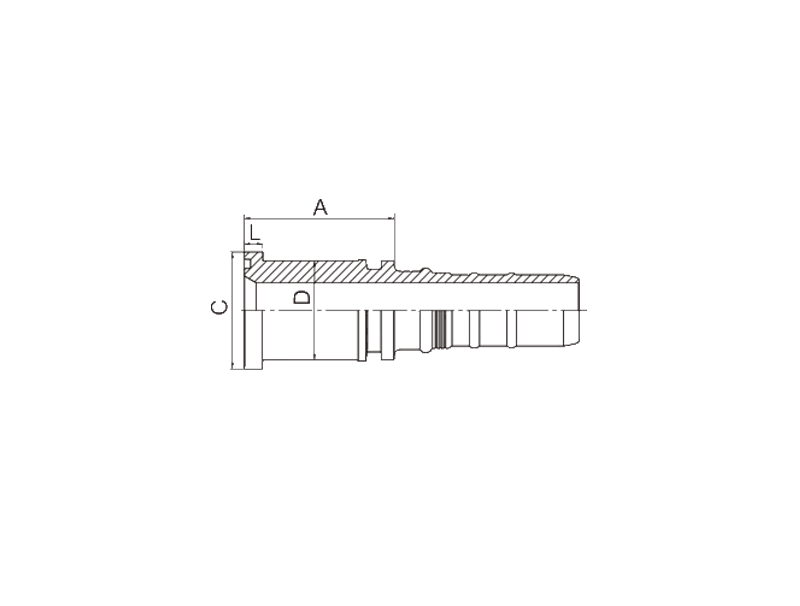

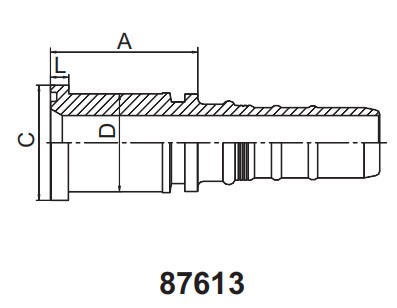

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 87613 SAE FLANGE 6000 PSI
| PART NO. | FLANGE SIZE | HOSE BORE | DIMENSIONS | ||||
| DN | DASH | A | C | D | L | ||
| 87613-12-12 | 3/4" | 20 | 12 | 53 | 41.3 | 32 | 8.76 |
| 87613-16-12 | 1" | 20 | 12 | 58 | 47.6 | 38 | 9.53 |
| 87613-16-16 | 1" | 25 | 16 | 59.4 | 47.6 | 38 | 9.53 |
| 87613-20-16 | 1.1/4" | 25 | 16 | 67.4 | 54 | 44 | 10.29 |
| 87613-20-20 | 1.1/4" | 32 | 20 | 69.8 | 54 | 44 | 10.29 |
| 87613-20-24 | 1.1/4" | 40 | 24 | 74.7 | 54 | 44 | 10.29 |
| 87613-24-20 | 1.1/2" | 32 | 20 | 78.8 | 63.5 | 51 | 12.57 |
| 87613-24-24 | 1.1/2" | 40 | 24 | 78.7 | 63.5 | 51 | 12.57 |
| 87613-32-24 | 2" | 40 | 24 | 91.2 | 79.4 | 67 | 12.57 |
| 87613-32-32 | 2" | 50 | 32 | 91 | 79.4 | 67 | 12.57 |
