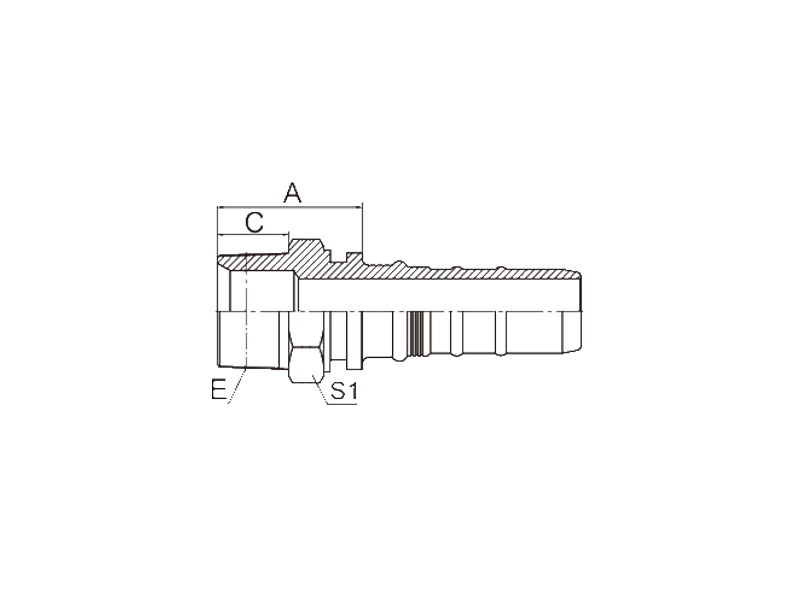

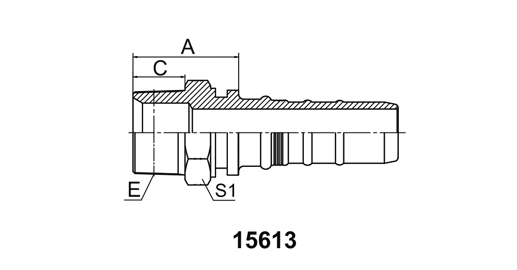

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 15613 NPT MALE
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | |||
| DN | DASH | A | C | S1 | ||
| 15613-12-12 | Z3/4"X14 | 20 | 12 | 37.5 | 19.5 | 30 |
| 15613-16-16 | Z1"X11.5 | 25 | 16 | 45.9 | 25.5 | 38 |
| 15613-20-20 | Z1.1/4"X11.5 | 32 | 20 | 51.3 | 26.5 | 46 |
| 15613-24-24 | Z1.1/2"X11.5 | 40 | 24 | 54.2 | 27.5 | 50 |
| 15613-32-32 | Z2"X11.5 | 50 | 32 | 56.5 | 27.5 | 65 |
