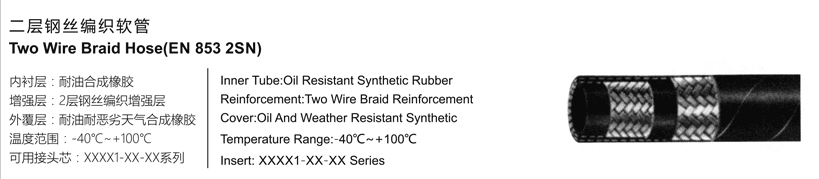

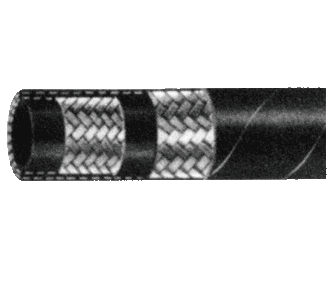

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 2SN Two Wire Braid Hose(EN 853 2SN)
| HOSE PART NO. | DN | HOSE SIZE | HOSE I.D. | HOSEO.D. | MIN.BURST PRESSURE | MAX W.P. | MIN.BEND. RAD. | FERRULE | |
| mm | DASH | in | mm | mm | MPa | MPa | mm | ||
| 2SN03 | 5 | -03 | 3/16 | 4.8 | 13.4 | 165 | 41.5 | 90 | 03310-03 |
| 2SN04 | 6 | -04 | 1/4 | 6.4 | 15.0 | 160 | 40.0 | 100 | 03310-04 |
| 2SN05 | 8 | -05 | 5/16 | 7.9 | 16.7 | 140 | 35.0 | 115 | 03310-05 |
| 2SN06 | 10 | -06 | 3/8 | 9.5 | 19.1 | 132 | 33.0 | 130 | 03310-06 |
| 2SN08 | 12 | -08 | 1/2 | 12.7 | 22.2 | 110 | 27.5 | 180 | 03310-08 |
| 2SN10 | 16 | -10 | 5/8 | 15.9 | 25.4 | 100 | 25.0 | 200 | 03310-10 |
| 2SN12 | 20 | -12 | 3/4 | 19.0 | 29.3 | 85 | 21.5 | 240 | 03310-12 |
| 2SN16 | 25 | -16 | 1 | 25.4 | 38.1 | 65 | 16.5 | 300 | 03310-16 |
| 2SN20 | 32 | -20 | 1.1/4 | 31.8 | 48.3 | 50 | 12.5 | 420 | 00200-20 |
| 2SN24 | 40 | -24 | 1.1/2 | 38.1 | 54.6 | 36 | 9.0 | 500 | 00200-24 |
| 2SN32 | 50 | -32 | 2 | 50.8 | 67.4 | 32 | 8.0 | 630 | 00200-32 |
