HYDRAULIC R15 Wire Spiral Hose(GB/T 10544 R15-EN 856 R15)
  • Air ProHYDRAULIC R15 Wire Spiral Hose(GB/T 10544 R15-EN 856 R15)

HYDRAULIC R15 Wire Spiral Hose(GB/T 10544 R15-EN 856 R15)

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials:stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC R15 Wire Spiral Hose(GB/T 10544 R15-EN 856 R15)

Model:R15

Send Inquiry

Product Description

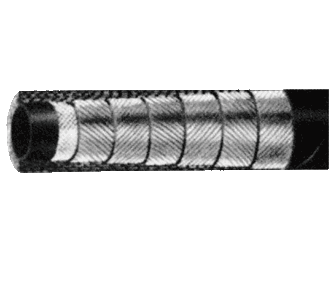

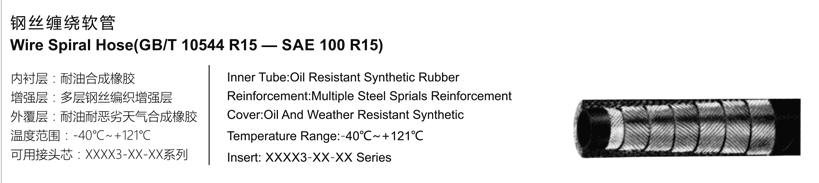

HYDRAULIC R15 Wire Spiral Hose(GB/T 10544 R15-EN 856 R15)




 HOSE PART NO.  DN  HOSE SIZE  HOSE I.D. HOSEO.D. MIN.BURST PRESSURE  MAX W.P. MIN.BEND. RAD. FERRULE
mm DASH in mm mm MPa MPa mm
R1506 10 -06 3/8 9.5 20.6 168 42 130 00621-06(R15)
R1508 12 -08 1/2 12.7 23.8 168 42 180 00621-08(R15)
R1512 20 -12 3/4 19.0 31.6 168 42 280 00621-12(R15)
R1516 25 -16 1 25.4 38.6 168 42 300 00621-16(R15)
R1520 32 -20 1.1/4 31.8 49.6 168 42 400 00621-20(R15)
R1524 40 -24 1.1/2 38.1 56.5 168 42 500 00621-24(R15)
