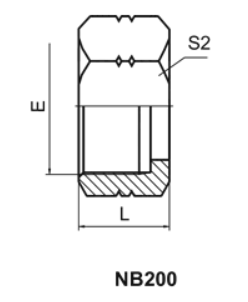

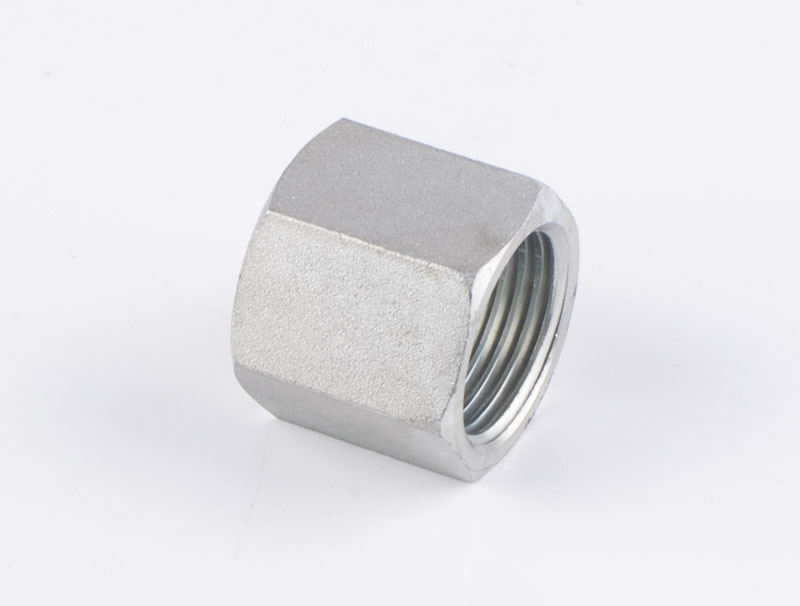

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials:stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC NB200 JIC TRIPLE LOCK NUT
PART NO. | THREAD | TUBE O.D.& SLEEVE | DIMENSIONS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
E | In. | INCH SLEEVE | mm | METRIC SLEEVE | L | S2 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
NB200-04 | 7/16"X20 | 1/4" | NB300-04 | 6 | NB500-06 | 15.8 | 14 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
NB200-05 | 1/2"X20 | 5/16" | NB300-05 | 8 | NB500-08 | 17.3 | 17 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
NB200-06 | 9/16"X18 | 3/8" | NB300-06 | 10 | NB500-10 | 18.5 | 19 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
NB200-08 | 3/4"X16 | 1/2" | NB300-08 | 12 | NB500-12 | 21.6 | 24 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
NB200-10 | 7/8"X14 | 14 | NB500-14 | 24.9 | 27 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
NB200-10 | 7/8"X14 | 15 | NB500-15 | 24.9 | 27 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
NB200-10 | 7/8"X14 | 5/8" | NB300-10 | 16 | NB500-16 | 24.9 | 27 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
NB200-12 | 1.1/16"X12 | 3/4" | NB300-12 | 18 | NB500-18 | 26.2 | 32 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
NB200-12A | 1.1/16"X12 | 20 | NB500-20A | 26.2 | 32 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
NB200-14 | 1.3/16"X12 | 20 | NB500-20 | 27.7 | 36 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
NB200-14 | 1.3/16"X12 | 7/8" | NB300-14 | 22 | NB500-22 | 27.7 | 36 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
NB200-16 | 1.5/16"X12 | 1" | NB300-16 | 25 | NB500-25 | 28.7 | 38 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
NB200-20 | 1.5/8"X12 | 28 | NB500-28 | 31.2 | 50 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
NB200-20 | 1.5/8"X12 | 30 | NB500-30 | 31.2 | 50 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
NB200-20 | 1.5/8"X12 | 1.1/4" | NB300-20 | 32 | NB500-32 | 31.2 | 50 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
NB200-24 | 1.7/8"X12 | 35 | NB500-35 | 36.1 | 60 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
NB200-24 | 1.7/8"X12 | 1.1/2" | NB300-24 | 38 | NB500-38 | 36.1 | 60 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
NB200-32 | 2.1/2"X12 | 2" | NB300-32 | 50 | NB500-50 | 44.5 |
75 |
Note: Nut and sleeve should be ordered speparately. The nut NB200 and sleeve NB500 is suitable for metric tube, the nut NB200 and sleeve NB300 is suitable for inch tube.
