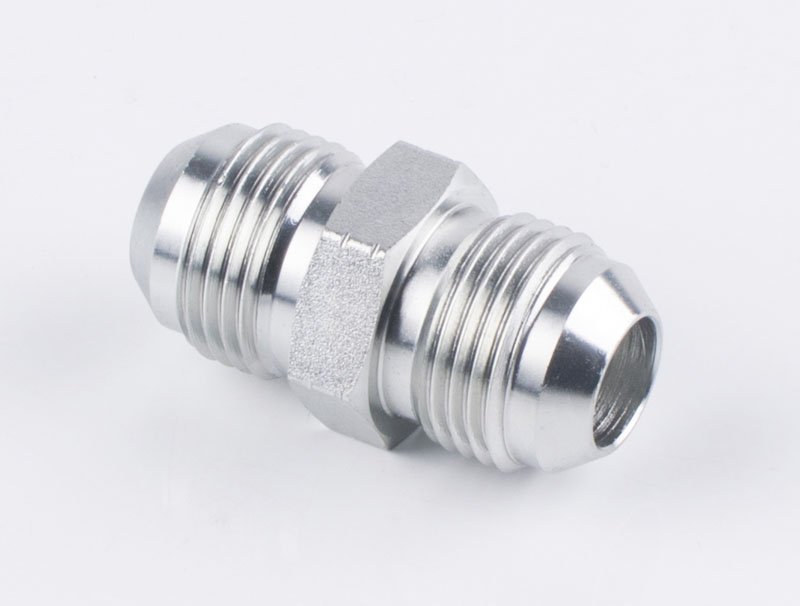

These america adaptors are widely used in construction machinery,automotive manufacturing,industrial pipelines,ships,energy,national defense,automation and other fields.Also for use with Air, Hydraulic Fluid, Isopropyl Alcohol, Natural Gas, Phosphoric Acid, Water.
The male pipe threads on these America adaptors have a sealant applied for extra protection against leaks. Also known as JIC (Joint Industrial Council) fittings, they provide a tight metal-to-metal seal on tubing that is flared to 37°. They are excellent corrosion resistance. Fittings require a nut and a sleeve (ferrule) for each tube end. Nuts and sleeves are sold separately.

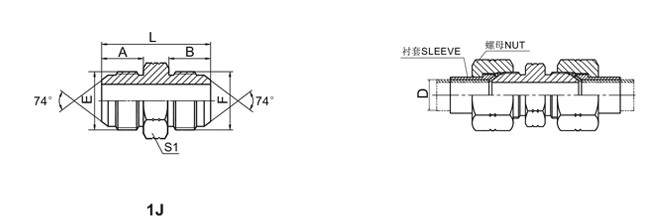

PART NO. | THREAD | DIMENSIONS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
E | F | A | B | L | S1 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1J-02 | 5/16"X24 | 5/16"X24 | 11.4 | 11.4 | 29 | 12 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1J-02-03 | 5/16"X24 | 3/8"X24 | 11.4 | 12.2 | 29.5 | 12 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1J-03 | 3/8"X24 | 3/8"X24 | 12.2 | 12.2 | 30.5 | 12 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1J-04 | 7/16"X20 | 7/16"X20 | 14 | 14 | 34 | 12 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1J-04-05 | 7/16"X20 | 1/2"X20 | 14 | 14 | 34 | 14 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1J-04-06 | 7/16"X20 | 9/16"X18 | 14 | 14.1 | 34.1 | 17 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1J-04-08 | 7/16"X20 | 3/4"X16 | 14 | 16.7 | 38.5 | 22 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1J-05 | 1/2"X20 | 1/2"X20 | 14 | 14 | 34 | 14 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1J-05-06 | 1/2"X20 | 9/16"X18 | 14 | 14.1 | 34 | 17 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1J-05-08 | 1/2"X20 | 3/4"X16 | 14 | 16.7 | 38.5 | 22 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1J-05-10 | 1/2"X20 | 7/8"X14 | 14 | 19.3 | 41 | 24 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1J-06 | 9/16"X18 | 9/16"X18 | 14.4 | 14.1 | 34.2 | 17 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1J-06-08 | 9/16"X18 | 3/4"X16 | 14.1 | 16.7 | 38.5 | 22 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1J-06-10 | 9/16"X18 | 7/8"X14 | 14.1 | 19.3 | 41.5 | 24 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1J-06-12 | 9/16"X18 | 1.1/16"X12 | 14.1 | 21.9 | 46 | 30 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1J-08 | 3/4"X16 | 3/4"X16 | 16.7 | 16.7 | 42 | 22 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1J-08-10 | 3/4"X16 | 7/8"X14 | 16.7 | 19.3 | 44 | 24 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1J-08-12 | 3/4"X16 | 1.1/16"X12 | 16.7 | 21.9 | 48.5 | 30 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1J-08-16 | 3/4"X16 | 1.5/16"X12 | 16.7 | 23.1 | 51 | 36 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1J-10 | 7/8"X14 | 7/8"X14 | 19.3 | 19.3 | 46.5 | 24 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1J-10-12 | 7/8"X14 | 1.1/16"X12 | 19.3 | 21.9 | 51 | 30 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1J-10-16 | 7/8"X14 | 1.5/16"X12 | 19.3 | 23.1 | 53.5 | 36 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1J-12 | 1.1/16"X12 | 1.1/16"X12 | 21.9 | 21.9 | 54 | 30 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1J-12-14 | 1.1/16"X12 | 1.3/16"X12 | 21.9 | 22.6 | 55.5 | 32 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1J-12-16 | 1.1/16"X12 | 1.5/16"X12 | 21.9 | 23.1 | 56 | 36 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1J-14 | 1.3/16"X12 | 1.3/16"X12 | 22.6 | 22.6 | 56 | 32 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1J-14-16 | 1.3/16"X12 | 1.5/16"X12 | 22.6 | 23.1 | 56.5 | 36 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1J-16 | 1.5/16"X12 | 1.5/16"X12 | 23.1 | 23.1 | 57 | 36 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1J-16-20 | 1.5/16"X12 | 1.5/8"X12 | 23.1 | 24.3 | 60.5 | 46 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1J-16-24 | 1.5/16"X12 | 1.7/8"X12 | 23.1 | 27.5 | 65.5 | 50 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1J-20 | 1.5/8"X12 | 1.5/8"X12 | 24.3 | 24.3 | 62 | 46 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1J-20-24 | 1.5/8"X12 | 1.7/8"X12 | 24.3 | 27.5 | 67 | 50 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1J-20-32 | 1.5/8"X12 | 2.1/2"X12 | 24.3 | 33.9 | 75 | 65 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1J-24 | 1.7/8"X12 | 1.7/8"X12 | 27.5 | 27.5 | 70 | 50 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1J-24-32 | 1.7/8"X12 | 2.1/2"X12 | 27.5 | 33.9 | 78.5 | 65 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1J-32 | 2.1/2"X12 | 2.1/2"X12 | 33.9 | 33.9 | 85 | 65 |
High quality hydraulic fitting can satisfy your different needs with its special quality and features.
1.high quality Zinc plated,Zn-Ni plated,Cr3,Cr6 plated.
2.high precision.all edges without burrs,brake sharp edges.
3.competitive price.
4. MOQ:300PCS
5. Material: iron, carbon steel, stainless steel, other metals
6.Standard / specification: Standard or as per drawing and samples (OEM)
7. Size: as per customers' requests
Customized service: We are specialized in all kinds of hydraulic hose fittings,adaptors,ferrules,flanges,fitting accessories.
1.Delivery:As general,we can guarantee the delivery within one month.
2.Port of loading: Ningbo or Shanghai
3.Samples Fee: We can offord the samples fee.
