AMERICA ELBOW ADAPTER JIC 1J4 MALE 37°CONE
  • Air ProAMERICA ELBOW ADAPTER JIC 1J4 MALE 37°CONE

AMERICA ELBOW ADAPTER JIC 1J4 MALE 37°CONE

These elbow adaptor for use with :Air, Hydraulic Fluid, Isopropyl Alcohol, Natural Gas, Phosphoric Acid, Water The male pipe threads on these fittings have a sealant applied for extra protection against leaks. Also known as JIC (Joint Industrial Council) fittings, they provide a tight metal-to-metal seal on tubing that is flared to 37°. They are excellent corrosion resistance. Fittings require a nut and a sleeve (ferrule) for each tube end. Nuts and sleeves are sold separately.

Model:1J4

Send Inquiry

Product Description

AMERICA ELBOW ADAPTOR JIC 1J4 MALE 37°CONE

Hydraulic fittings come in a variety of shapes such as straight, elbow (at varying angles), and tee. Other ways to connect hydraulic hoses include hydraulic quick couplers, as well as through some hydraulic hose adapters and plugs. Products differ by hydraulic hose ID, Hydraulic fitting connection type, fitting shape and other considerations.

America elbow adaptorJIC (37° Flare) The Society of Automotive Engineers (SAE) specifies a 37° angle flare or seat be used with high pressure hydraulic tubing. These are commonly called JIC couplings. The JIC 37° flare male will mate with a JIC female only.* The JIC male has straight threads and a 37° flare seat. The JIC female has straight threads and a 37° flare seat. The seal is made on the 37° flare seat. Some sizes have the same threads as the SAE 45° flare. Carefully measure the seat angle to differentiate.

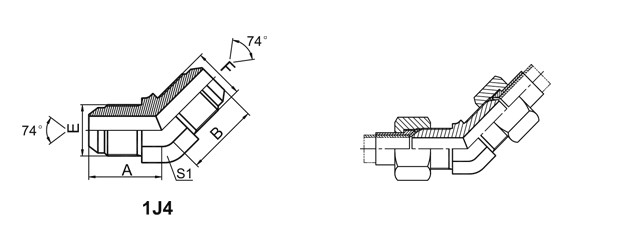

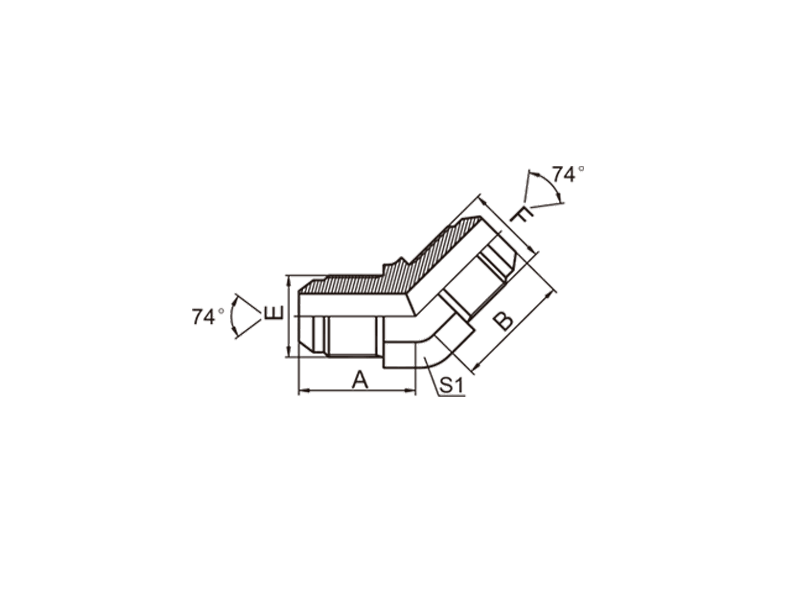

PART NO. THREAD DIMENSIONS
E F A B S1
1J4-04 7/16"X20 7/16"X20 21.5 21.5 11
1J4-05 1/2"X20 1/2"X20 23 23 14
1J4-06 9/16"X18 9/16"X18 22.8 22.8 14
1J4-08 3/4"X16 3/4"X16 26.8 26.8 19
1J4-10 7/8"X14 7/8"X14 31 31 22
1J4-12 1.1/16"X12 1.1/16"X12 35.5 35.5 27
1J4-16 1.5/16"X12 1.5/16"X12 38.5 38.5 33

Note:Nut and sleeve should be ordered speparately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube.

Product Details

High quality hydraulic fitting can satisfy your different needs with its special quality and features.
1.high quality Zinc plated,Zn-Ni plated,Cr3,Cr6 plated.
2.high precision.all edges without burrs,brake sharp edges.
3.competitive price.
4. MOQ:300PCS
5. Material: iron, carbon steel, stainless steel, other metals
6.Standard / specification: Standard or as per drawing and samples (OEM)
7. Size: as per customers' requests



Customized service: We are specialized in all kinds of hydraulic hose fittings,adaptors,ferrules,flanges,fitting accessories.

Deliver,Shipping And Serving

1.Delivery:As general,we can guarantee the delivery within one month.

2.Port of loading: Ningbo or Shanghai

3.Samples Fee: We can offord the samples fee.
