American hydraulic JIC Thread Types (con’t.) *JIC (37° Flare) The Society of Automotive Engineers (SAE) specifies a 37° angle flare or seat be used with high pressure hydraulic tubing. These are commonly called JIC couplings. The JIC 37° flare male will mate with a JIC female only.* The JIC male has straight threads and a 37° flare seat. The JIC female has straight threads and a 37° flare seat. The seal is made on the 37° flare seat. Some sizes have the same threads as the SAE 45° flare. Carefully measure the seat angle to differentiate.

Model:1JG

Send Inquiry

Product Description

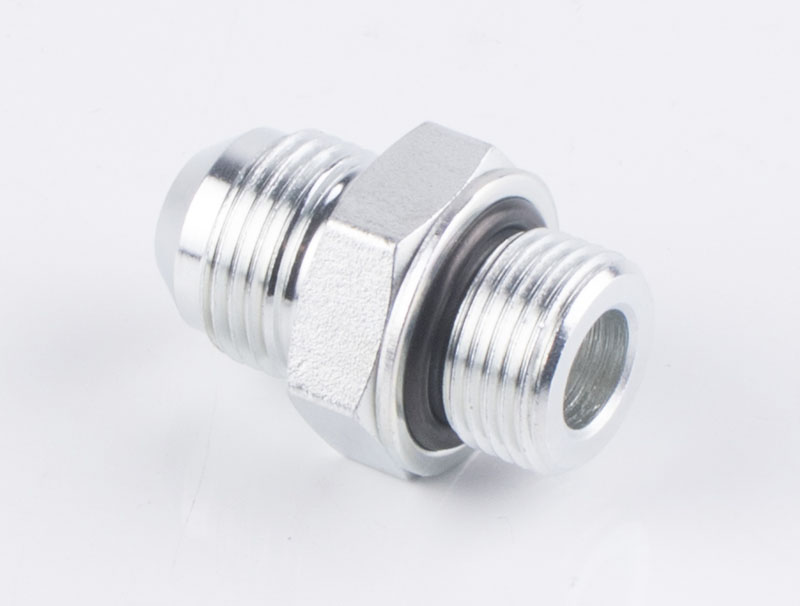

HYDRAULIC JIC THREAD 1JG MALE 37°FLARE/BSP MALE O-RING

The male pipe threads on these fittings have a sealant applied for extra protection against leaks. Also known as JIC (Joint Industrial Council) fittings, they provide a tight metal-to-metal seal on tubing that is flared to 37°. They are excellent corrosion resistance. Fittings require a nut and a sleeve (ferrule) for each tube end. Nuts and sleeves are sold separately.Fittings with female tube end have an internal flare that mates with the male tube end of another fitting.

BSPP threads and UN/UNF (SAE) male threads have a gasket to protect against leaks. UN/UNF (SAE) threads are also known as O-ring boss threads.

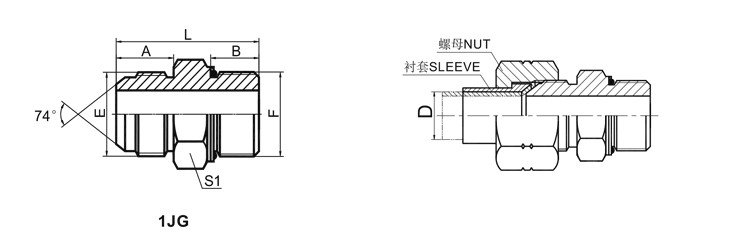

PART NO.   THREAD  O-RING    DIMENSIONS
E F F END A B S1 S2
1JG4-04OG 7/16"X20 G1/4"X19 O111 21 28 14 19
1JG4-05-04OG 1/2"X20 G1/4"X19 O111 21 28 14 19
1JG4-06-04OG 9/16"X18 G1/4"X19 O111 22 28 14 19
1JG4-06OG 9/16"X18 G3/8"X19 O113 23 32 19 22
1JG4-08-06OG 3/4"X16 G3/8"X19 O113 25.8 32 19 22
1JG4-08OG 3/4"X16 G1/2"X14 O115 27.5 36 22 27
1JG4-10-08OG 7/8"X14 G1/2"X14 O115 29.5 38 22 27
1JG4-10OG 7/8"X14 G5/8"X14 O910 29.5 38 22 30
1JG4-12-10OG 1.1/16"X12 G5/8"X14 O910 34 38.5 27 30
1JG4-12-16OG 1.1/16"X12 G1"X11 O217 37.5 44 33 41
1JG4-12OG 1.1/16"X12 G3/4"X14 O119 34 42 27 32
1JG4-16-12OG 1.5/16"X12 G3/4"X14 O119 38 44 33 32
1JG4-16OG 1.5/16"X12 G1"X11 O217 38 44 33 41
1JG4-20OG 1.5/8"X12 G1.1/4"X11 O222 43 47.5 41 50
1JG4-24OG 1.7/8"X12 G1.1/2"X11 O224 49 51.5 48 55

Note:Nut and sleeve should be ordered speparately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube.

Product Details

High quality hydraulic fitting can satisfy your different needs with its special quality and features.
1.high quality Zinc plated,Zn-Ni plated,Cr3,Cr6 plated.
2.high precision.all edges without burrs,brake sharp edges.
3.competitive price.
4. MOQ:300PCS
5. Material: iron, carbon steel, stainless steel, other metals
6.Standard / specification: Standard or as per drawing and samples (OEM)
7. Size: as per customers' requests



Customized service: We are specialized in all kinds of hydraulic hose fittings,adaptors,ferrules,flanges,fitting accessories.
