Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC KN NPT MALE/NPT FEMALE/NPT MALE
|
PART NO. |
THREAD |

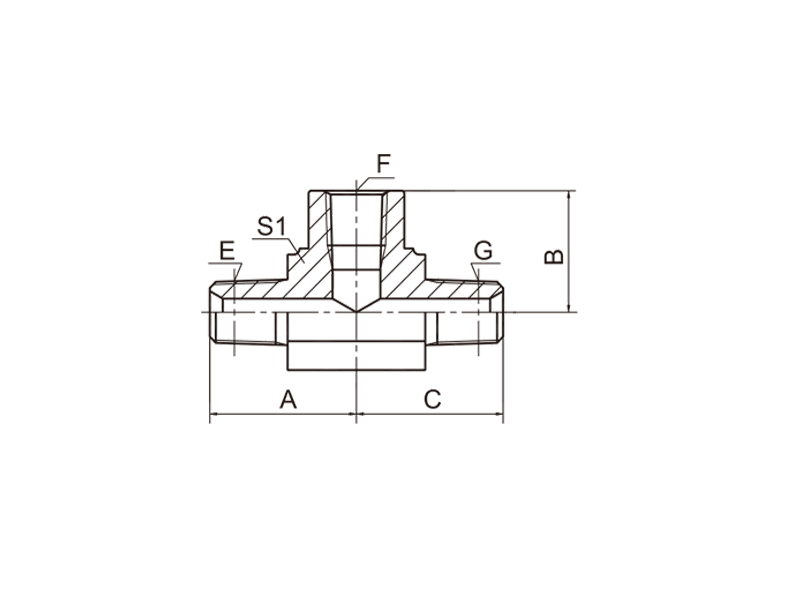

DIMENSIONS |
|||||
|
E |
F |
G |
A |
B |
C |
S1 |
|
|
KN-02 |
Z1/8"X27 |
Z1/8"X27 |
Z1/8"X27 |
24.5 |
17.8 |
24.5 |
16 |
|
KN-04 |
Z1/4"X18 |
Z1/4"X18 |
Z1/4"X18 |
28 |
22.4 |
28 |
19 |
|
KN-06 |
Z3/8"X18 |
Z3/8"X18 |
Z3/8"X18 |
33.5 |
25 |
33.5 |
24 |
|
KN-08 |
Z1/2"X14 |
Z1/2"X14 |
Z1/2"X14 |
41.2 |
31.2 |
41.2 |
30 |
|
KN-12 |
Z3/4"X14 |
Z3/4"X14 |
Z3/4"X14 |
45.2 |
34.5 |
45.2 |
33 |
|
KN-16 |
Z1"X11.5 |
Z1"X11.5 |
Z1"X11.5 |
54.5 |
41.1 |
54.5 |
41 |
