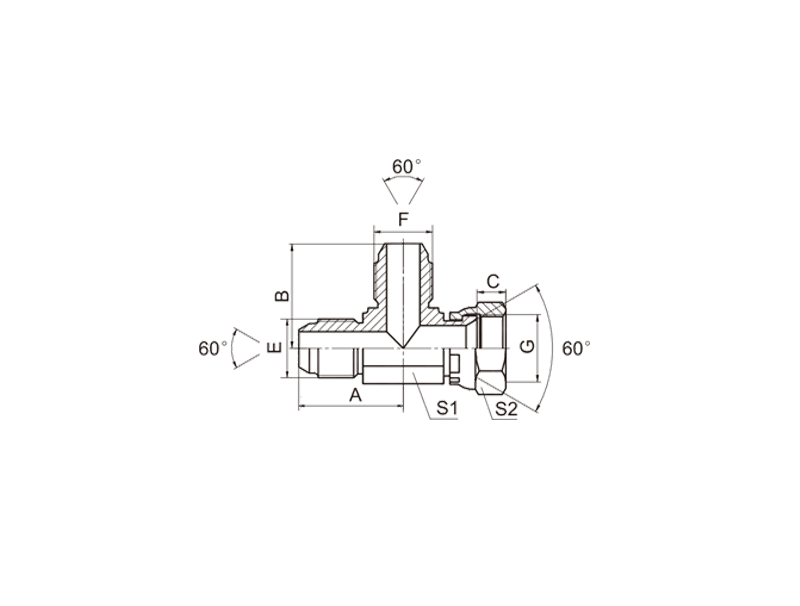

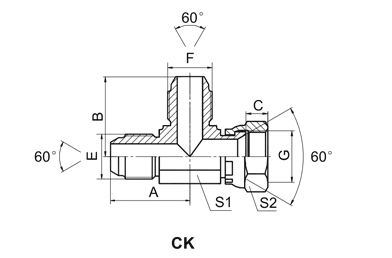

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials:stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC CK JIS METRIC MALE 60°CONE / JIS?METRIC FEMALE 60°SEAT RUN TEE
PART NO. | THREAD | DIMENSIONS | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
E | F | G | A | B | C | S1 | S2 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
CK-14 | M14X1.5 | M14X1.5 | M14X1.5 | 26.5 | 26.5 | 10.5 | 14 | 19 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
CK-16 | M16X1.5 | M16X1.5 | M16X1.5 | 29.5 | 29.50 | 10 | 16 | 22 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
CK-18 | M18X1.5 | M18X1.5 | M18X1.5 | 30.8 | 30.8 | 11.5 | 19 | 24 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
CK-22 | M22X1.5 | M22X1.5 | M22X1.5 | 35.5 | 35.5 | 14 | 22 | 27 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
CK-24 | M24X1.5 | M24X1.5 | M24X1.5 | 37 | 37 | 15 | 22 | 32 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
CK-30 | M30X1.5 | M30X1.5 | M30X1.5 | 45 | 43 | 18.3 | 30 | 36 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
CK-33 | M33X1.5 | M33X1.5 | M33X1.5 | 50 | 50 | 21.3 | 33 | 41 |
