HYDRAULIC 1EH METRIC MALE O-RING/ METIRC MALE ISO 6149-2
  • Air ProHYDRAULIC 1EH METRIC MALE O-RING/ METIRC MALE ISO 6149-2

HYDRAULIC 1EH METRIC MALE O-RING/ METIRC MALE ISO 6149-2

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials:stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 1EH METRIC MALE O-RING/ METIRC MALE ISO 6149-2

Model:1EH

Send Inquiry

Product Description

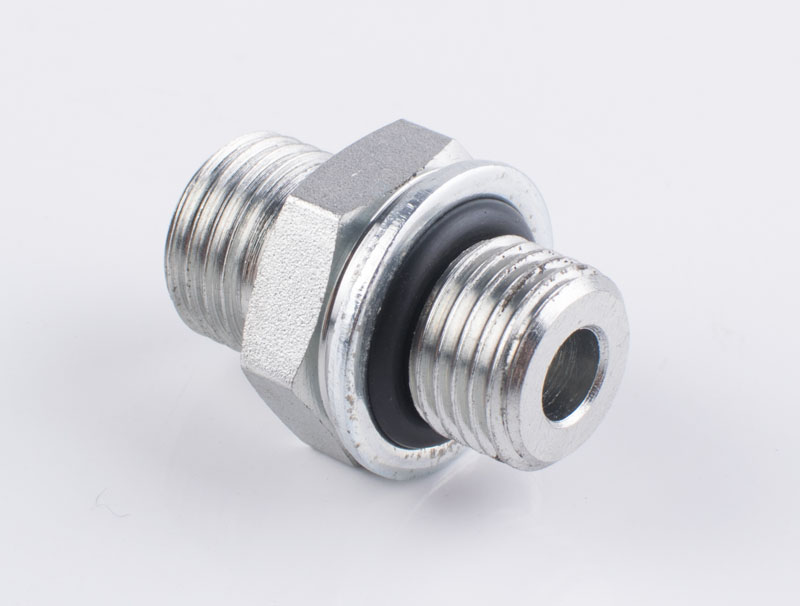

HYDRAULIC  1EH METRIC MALE O-RING/ METIRC MALE ISO 6149-2

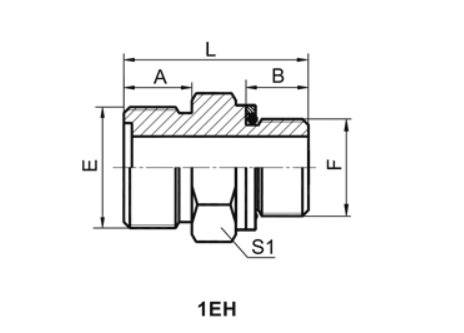

 PART NO.  THREAD O-RING    DIMENSIONS
E F E END F END A B L S1
1EH-12-10 M12X1.25 M10X1 8X1.9 O08.1X1.6 11 8.5 26.5 14
1EH-14-12 M14X1.5 M12X1.5 10X1.9 O09.3X2.4 11 11 29.5 17
1EH-16-14 M16X1.5 M14X1.5 11X1.9 O11.3X2.4 11 11 29.5 19
1EH-18-16 M18X1.5 M16X1.5 13X1.9 O13.3X2.4 11 11.5 31.5 22
1EH-22-18 M22X1.5 M18X1.5 16X2.4 O15.3X2.4 12 12.5 34.5 24
1EH-27-22 M27X1.5 M22X1.5 20X2.4 O19.3X2.4 13 15 38 30
1EH-30-27 M30X1.5 M27X2 24X2.4 O23.5X3.0 14 18.5 43.5 32
1EH-36-33 M36X2 M33X2 30X3.1 O29.2X3.0 16 18.5 47.5 41
1EH-39-33 M39X2 M33X2 32X3.1 O29.2X3.0 18 18.5 49.5 41
1EH-42 M42X2 M42X2 35X3.1 O38.5X3.0 20 19 54 50
1EH-45-42 M45X2 M42X2 38X3.1 O38.5X3.0 20 19 54 50
1EH-52-48 M52X2 M48X2 40X3.1 O44.5X3.0 22 21.5 58.5 55


Note:

1 The parameters of E end O-Ring are ring outside diameter and ring width.

2 F end is connected with ISO 9974-1 port and connected with ISO 6149-1 port without retaining ring.
