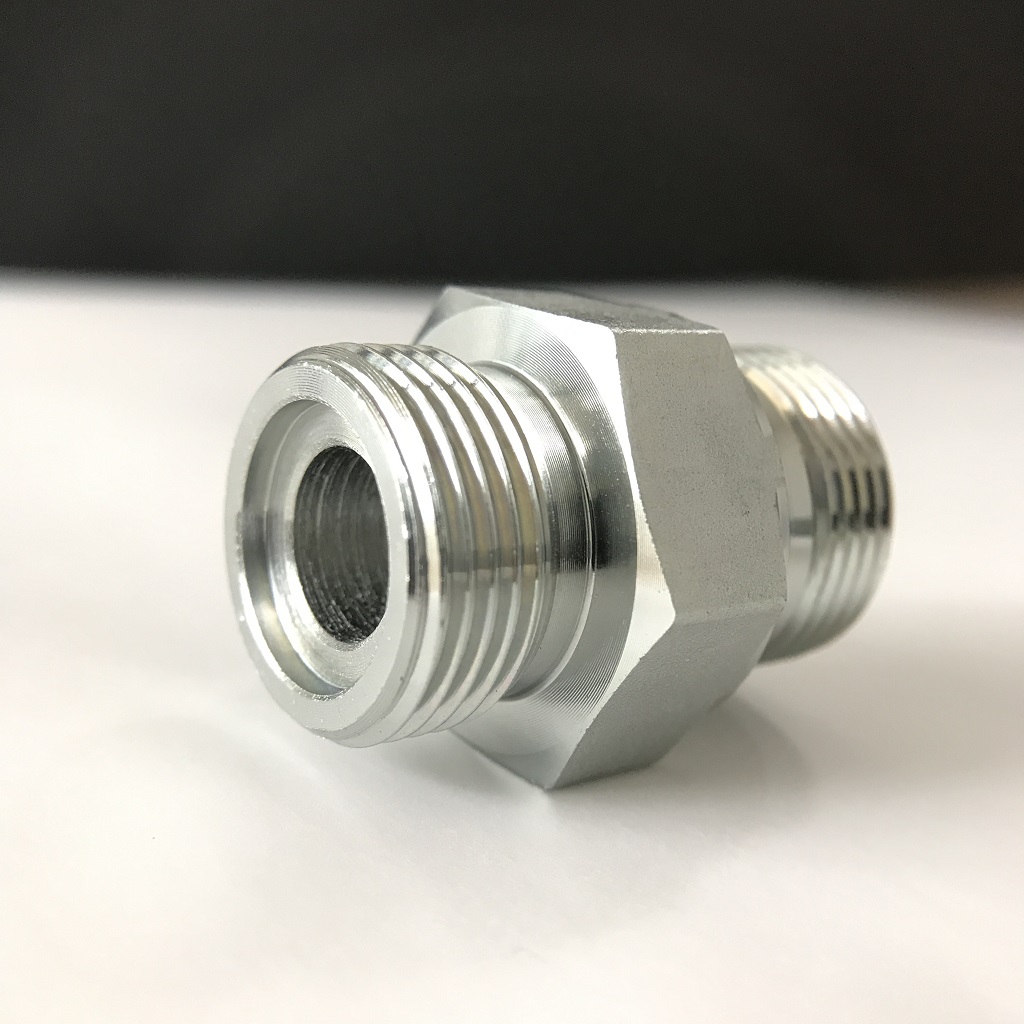

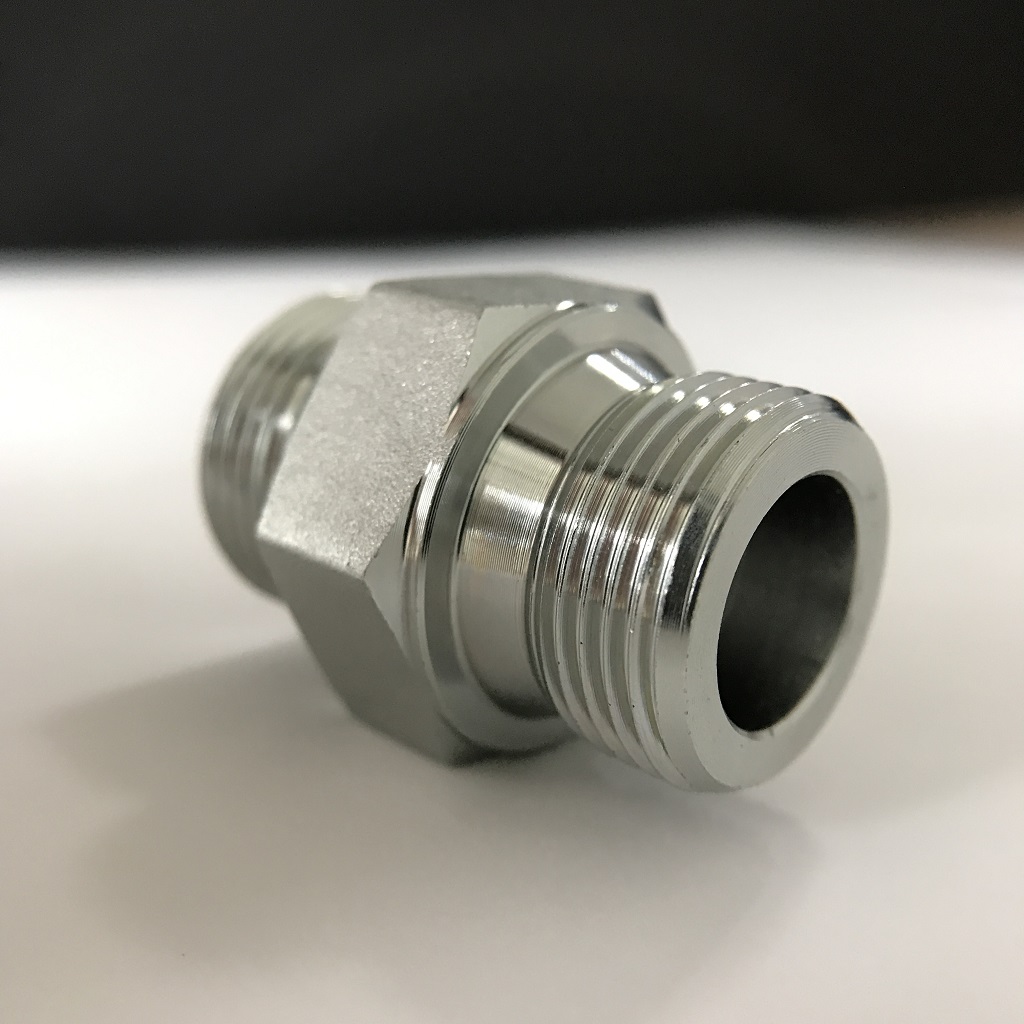

HYDRAULIC 1EL METRIC MALE O-RING/METRIC MALE WITH BONDED SEAL

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials:stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 1EL METRIC MALE O-RING/METRIC MALE WITH BONDED SEAL

Model:1EL

Send Inquiry

Product Description

HYDRAULIC  1EL METRIC MALE O-RING/METRIC MALE WITH BONDED SEAL

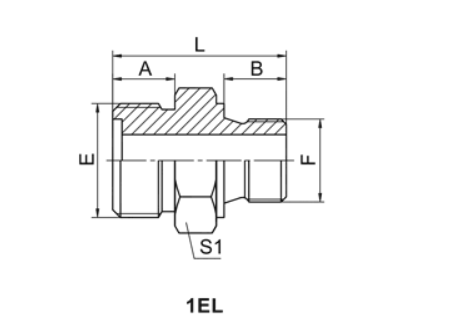

 PART NO.  THREAD  SEAL    DIMENSIONS
E F E END F END A B L S1
1EL-14 M14X1.5 M14X1.5 10X1.9 ZHD-14 11 12 30.5 19
1EL-14-16 M14X1.5 M16X1.5 10X1.9 ZHD-16 11 12 31 22
1EL-14-18 M14X1.5 M18X1.5 10X1.9 ZHD-18 11 12 32.5 24
1EL-14-22 M14X1.5 M22X1.5 10X1.9 ZHD-22 11 14 36.5 27
1EL-16-14 M16X1.5 M14X1.5 11X1.9 ZHD-14 11 12 29 19
1EL-16-18 M16X1.5 M18X1.5 11X1.9 ZHD-16 11 12 31 24
1EL-22-18 M22X1.5 M18X1.5 16X2.4 ZHD-18 12 12 33.5 24
1EL-27-22 M27X1.5 M22X1.5 18X2.4 ZHD-22 13 14 38.5 30
1EL-27-33 M27X1.5 M33X2 18X2.4 ZHD-33 13 18 44 41
1EL-30-18 M30X1.5 M18X1.5 24X2.4 ZHD-18 14 12 38.5 32
1EL-30-27 M30X1.5 M27X2 24X2.4 ZHD-27 14 16 41 34
1EL-36-33 M36X2 M33X2 30X3.1 ZHD-33 16 18 49 41
1EL-36-48 M36X2 M48X2 30X3.1 ZHD-48 16 22 53 60
1EL-45-42 M45X2 M42X2 38X3.1 ZHD-42 21 20 56 50
1EL-52-48 M52X2 M48X2 40X3.1 ZHD-48 22 22 61 60


Note: The parameter of E end O-Ring is ring outside diameter and ring width. F end is sealed with bonded seal.
