HYDRAULIC  1EH4-OG 45°METRIC MALE O-RING / METIRC MALE ADJUSTABLE STUD END ISO 6149-2
  • Air ProHYDRAULIC  1EH4-OG 45°METRIC MALE O-RING / METIRC MALE ADJUSTABLE STUD END ISO 6149-2

HYDRAULIC 1EH4-OG 45°METRIC MALE O-RING / METIRC MALE ADJUSTABLE STUD END ISO 6149-2

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials:stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 1EH4-OG 45°METRIC MALE O-RING / METIRC MALE ADJUSTABLE STUD END ISO 6149-2

Model:1EH4-OG

Send Inquiry

Product Description

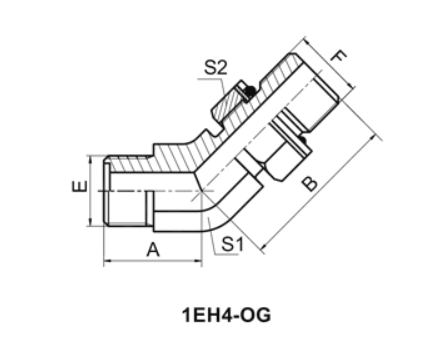

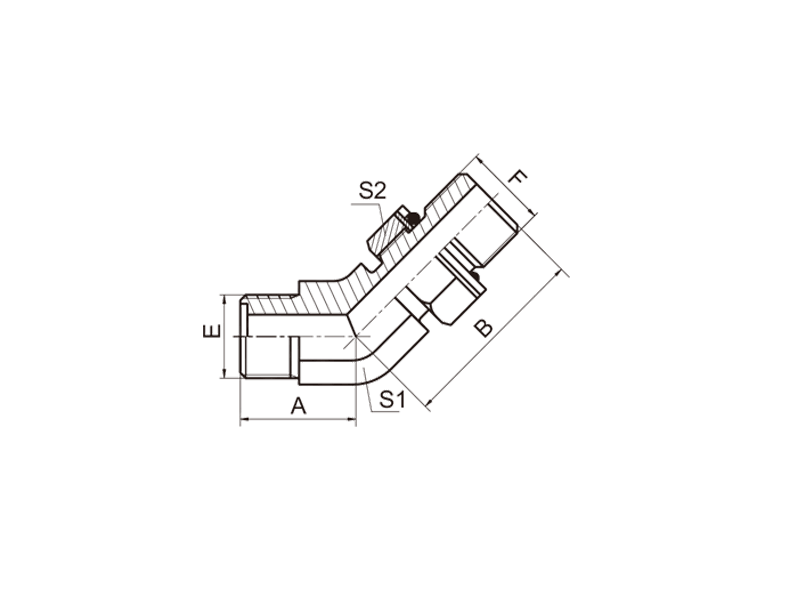

HYDRAULIC  1EH4-OG 45°METRIC MALE O-RING / METIRC MALE ADJUSTABLE STUD END ISO 6149-2




 PART NO.  THREAD  O-RING    DIMENSIONS
E F E END F END A B S1 S2
1EH4-12-10OG M12X1.25 M10X1 8X1.9 O08.1X1.6 18 25.5 12 14
1EH4-14-12OG M14X1.5 M12X1.5 10X1.9 O09.3X2.4 19.5 30 14 17
1EH4-16-14OG M16X1.5 M14X1.5 11X1.9 O11.3X2.4 20 30.5 17 19
1EH4-18-16OG M18X1.5 M16X1.5 13X1.9 O13.3X2.4 21.5 34 19 22
1EH4-22-18OG M22X1.5 M18X1.5 16X2.4 O15.3X2.4 23 38 22 24
1EH4-27-22OG M27X1.5 M22X1.5 20X2.4 O19.3X2.4 24.5 40.5 27 27
1EH4-30-27OG M30X1.5 M27X2 24X2.4 O23.5X3.0 26 48 30 32
1EH4-36-33OG M36X2 M33X2 30X3.1 O29.2X3.0 30.5 49.5 36 41
1EH4-39-33OG M39X2 M33X2 32X3.1 O29.2X3.0 36 52 41 41
1EH4-42OG M42X2 M42X2 35X3.1 O38.5X3.0 38 53 41 50
1EH4-45-42OG M45X2 M42X2 38X3.1 O38.5X3.0 39 54 46 50
1EH4-52-48OG M52X2 M48X2 40X3.1 O44.5X3.0 42 58.5 50 55


Note:

1 The parameters of E end O-Ring are ring outside diameter and ring width.

2 F end is connected with ISO 9974-1 port and connected with ISO 6149-1 port without retaining ring.
