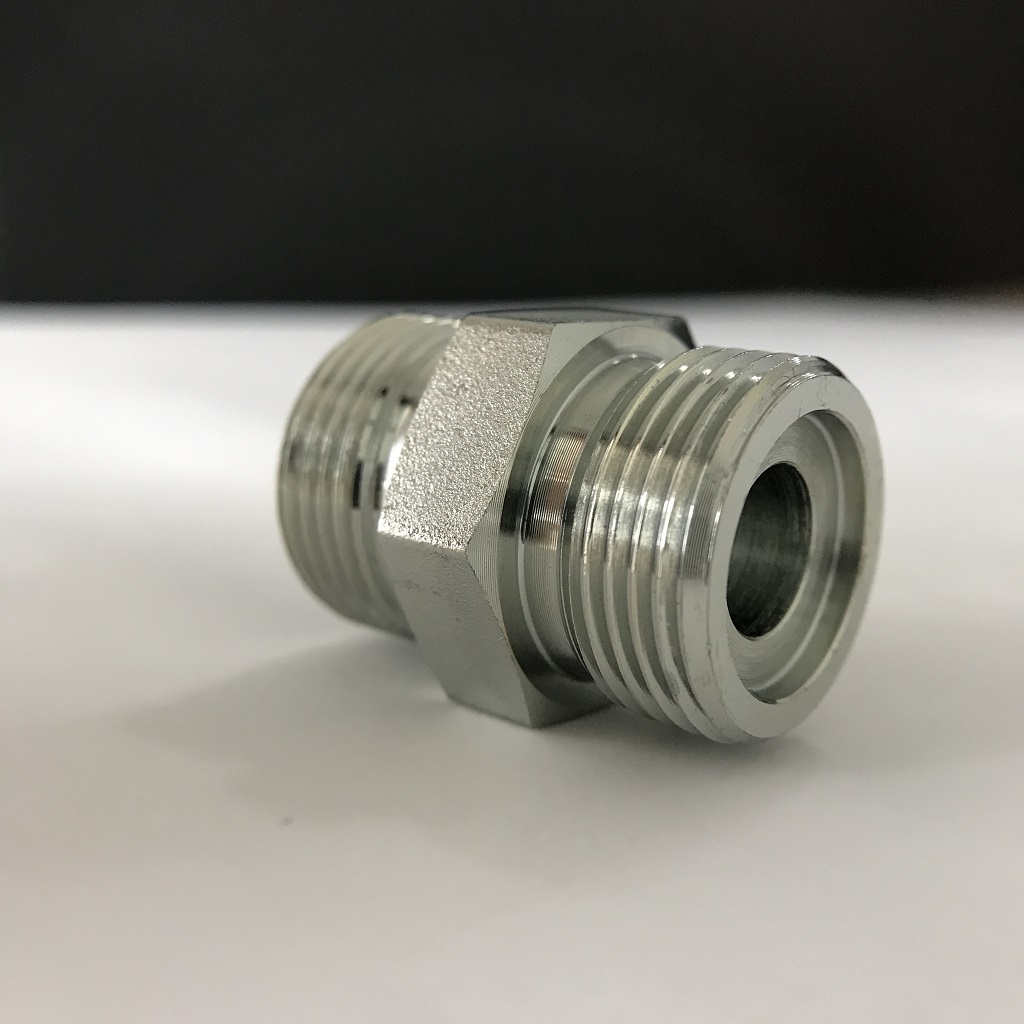

HYDRAULIC 1E METRIC MALE O-RING
  • Air ProHYDRAULIC 1E METRIC MALE O-RING

HYDRAULIC 1E METRIC MALE O-RING

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials:stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 1E METRIC MALE O-RING

Model:1E

Send Inquiry

Product Description

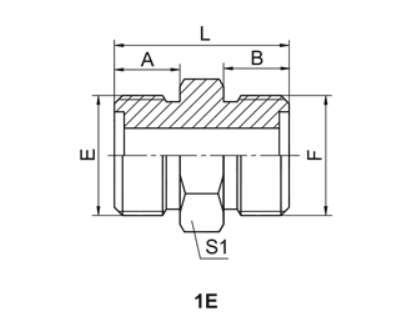

HYDRAULIC  1E METRIC MALE O-RING


PART NO.  THREAD  O-RING    DIMENSIONS
E F E END F END A B L S1
1E-12 M12X1.25 M12X1.25 8X1.9 8X1.9 11 11 28 14
1E-14 M14X1.5 M14X1.5 10X1.9 10X1.9 11 11 28 17
1E-16 M16X1.5 M16X1.5 11X1.9 11X1.9 11 11 28 17
1E-18 M18X1.5 M18X1.5 13X1.9 13X1.9 11 11 28 19
1E-22 M22X1.5 M22X1.5 16X2.4 16X2.4 12 12 32 24
1E-27 M27X1.5 M27X1.5 20X2.4 20X2.4 13 13 36 30
1E-30 M30X1.5 M30X1.5 24X2.4 24X2.4 14 14 39 32
1E-36 M36X2 M36X2 30X3.1 30X3.1 16 16 43 38
1E-39 M39X2 M39X2 32X3.1 32X3.1 18 18 49 41
1E-42 M42X2 M42X2 35X3.1 35X3.1 20 20 53 46
1E-45 M45X2 M45X2 38X3.1 38X3.1 21 21 55 46
1E-52 M52X2 M52X2 40X3.1 40X3.1 22 22 59 55
1E-60 M60X2 M60X2 45X3.1 45X3.1 24 24 65 65
1E-64 M64X2 M64X2 50X3.1 50X3.1 27 27 71 70

 Note: The parameter of O-Ring is ring outside diameter and ring width.
