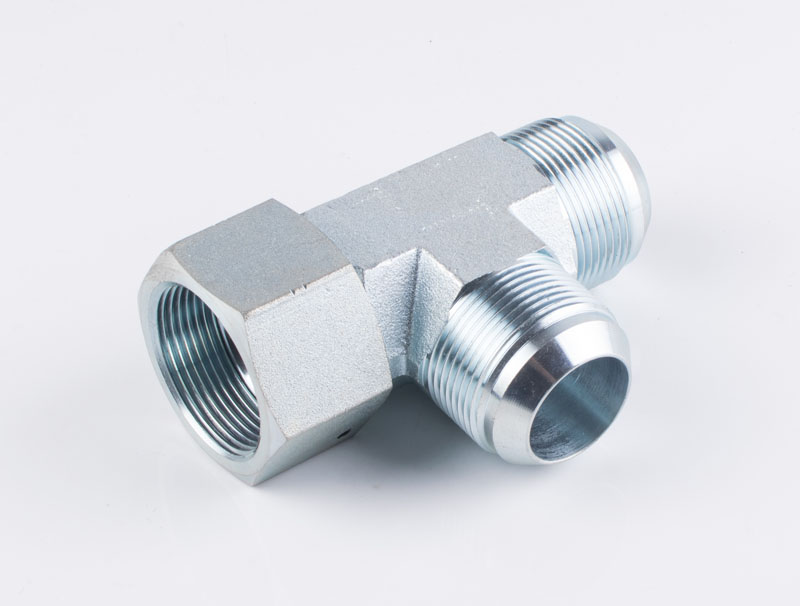

HYDRAULIC CJ JIC MALE/JIC MALE/JIC FEMALE
  • Air ProHYDRAULIC CJ JIC MALE/JIC MALE/JIC FEMALE

HYDRAULIC CJ JIC MALE/JIC MALE/JIC FEMALE

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials:stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 8CJ JIC MALE/JIC MALE/JIC FEMALE

Model:CJ

Send Inquiry

Product Description

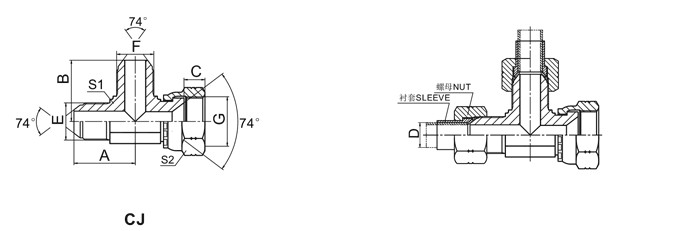

HYDRAULIC CJ JIC MALE/JIC MALE/JIC FEMALE


 PART NO.  THREAD   DIMENSIONS
E F G A B C S1 S2
CJ-04 7/16"X20 7/16"X20 7/16"X20 24.5 24.5 9 11 15
CJ-05 1/2"X20 1/2"X20 1/2"X20 26.6 26.6 9.5 14 17
CJ-06 9/16"X18 9/16"X18 9/16"X18 26.9 26.9 10.5 14 19
CJ-08 3/4"X16 3/4"X16 3/4"X16 32 32 9.5 19 24
CJ-10 7/8"X14 7/8"X14 7/8"X14 37.8 37.8 13 22 27
CJ-10-08-10 7/8"X14 7/8"X14 7/8"X14 37.8 34.8 13 22 27
CJ-12 1.1/16"X12 1.1/16"X12 1.1/16"X12 44.2 44.2 15 27 32
CJ-12-08-12 1.1/16"X12 1.1/16"X12 1.1/16"X12 44.2 37.9 15 27 32
CJ-14 1.3/16"X12 1.3/16"X12 1.3/16"X12 47.5 47.5 15 30 36
CJ-16 1.5/16"X12 1.5/16"X12 1.5/16"X12 49 49 16 33 41
CJ-20 1.5/8"X12 1.5/8"X12 1.5/8"X12 55.5 55.5 17 41 50
CJ-24 1.7/8"X12 1.7/8"X12 1.7/8"X12 63 63 20 48 55
CJ-32 2.1/2"X12 2.1/2"X12 2.1/2"X12 78 78 24.5 63 75
Note:Nut and sleeve should be orderd speparately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube.
