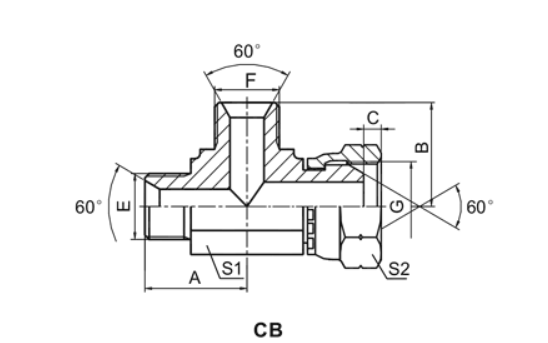

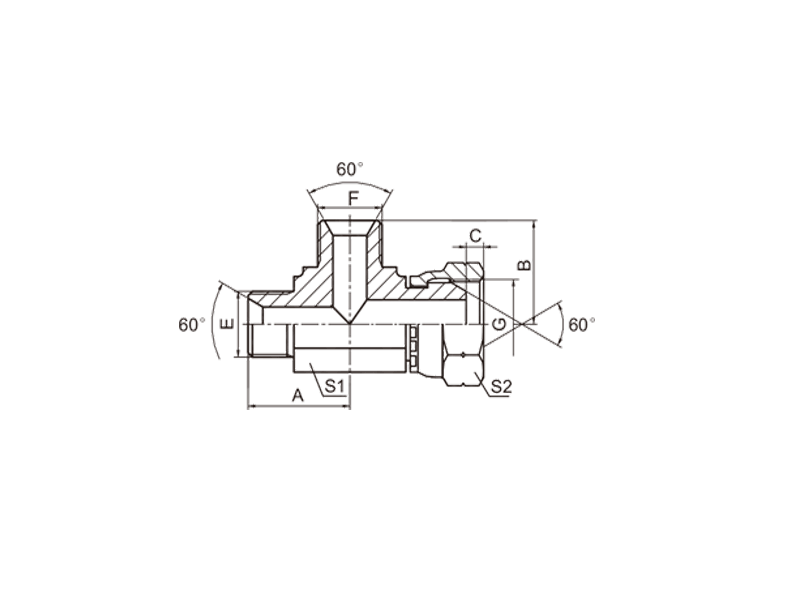

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials:stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC CB BSP MALE 60°SEAT / BSP FEMALE 60°CONE RUN TEE
PART NO. | THREAD | DIMENSIONS | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
E | F | G | A | B | C | S1 | S2 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
CB-02 | G1/8"X28 | G1/8"X28 | G1/8"X28 | 19.8 | 19.8 | 5.5 | 11 | 14 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
CB-04 | G1/4"X19 | G1/4"X19 | G1/4"X19 | 25 | 25 | 5.5 | 14 | 19 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
CB-06 | G3/8"X19 | G3/8"X19 | G3/8"X19 | 27.5 | 27.5 | 6.3 | 16 | 22 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
CB-08 | G1/2"X14 | G1/2"X14 | G1/2"X14 | 34.5 | 34.5 | 7.5 | 22 | 27 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
CB-10 | G5/8"X14 | G5/8"X14 | G5/8"X14 | 34.5 | 34.5 | 9.5 | 22 | 30 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
CB-12 | G3/4"X14 | G3/4"X14 | G3/4"X14 | 40 | 40 | 10.9 | 27 | 32 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
CB-16 | G1"X11 | G1"X11 | G1"X11 | 46 | 46 | 11.7 | 33 | 41 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
CB-20 | G1.1/4"X11 | G1.1/4"X11 | G1.1/4"X11 | 50.5 | 50.5 | 11 | 41 | 50 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
CB-24 | G1.1/2"X11 | G1.1/2"X11 | G1.1/2"X11 | 57.5 | 57.5 | 13 | 48 | 55 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
CB-32 | G2"X11 | G2"X11 | G2"X11 | 72.5 | 72.5 | 16 | 63 | 70 |
