HYDRAULIC ADAPTER JIS GAS MALE 60°CONE/BSP MALE 60°SEAT 1SB
  • Air ProHYDRAULIC ADAPTER JIS GAS MALE 60°CONE/BSP MALE 60°SEAT 1SB

HYDRAULIC ADAPTER JIS GAS MALE 60°CONE/BSP MALE 60°SEAT 1SB

Hydraulic adapter The male half has a 30° seat with a straight thread, while the female has a 300 seat with a straight thread as well. This connection and the 37° Flare are alike, however it's 30° seat and BSPP-like thread dimensions make it different from the American 37° Flare.

Model:1SB

Send Inquiry

Product Description

HYDRAULIC ADAPTER JIS GAS MALE 60°CONE/BSP MALE 60°SEAT 1SB


JIS TAPERED PIPE THREAD

The hydraulic adapter Japanese tapered pipe thread connector is identical to and interchangeable with the BSPT (tapered) connector. The Japanese male thread does not have a 30° Flare, and will not mate with the BSPP female swivel with conical seat.
The seal on the Japanese tapered pipe thread connector is made on the threads. Use of a thread sealant is recommended.

Thread form per JIS B 0203 (identical to BSPT)

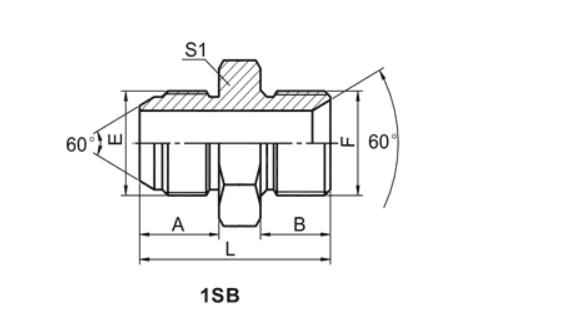

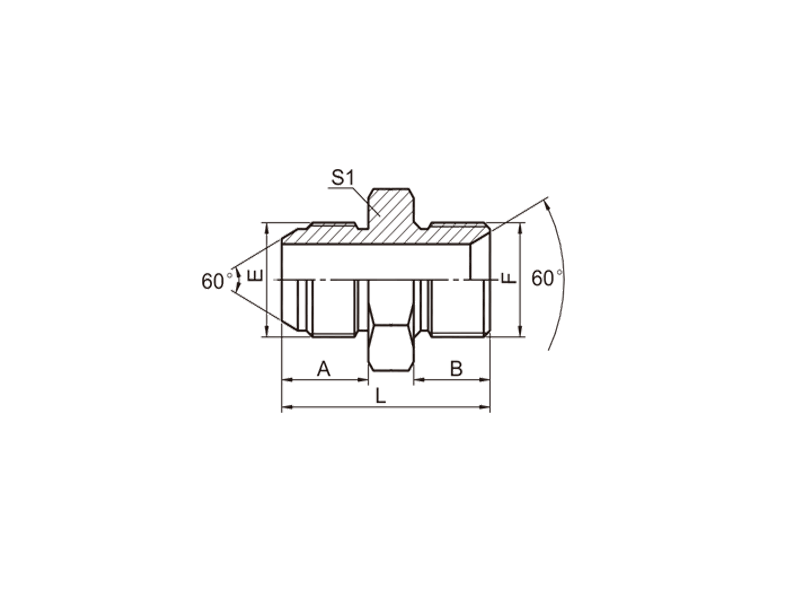

 PART NO.     THREAD      DIMENSIONS
E F A B L S1
1SB-04 G1/4"X19 G1/4"X19 16 12 34 19
1SB-04-06 G1/4"X19 G3/8"X19 16 13.5 37.5 22
1SB-06 G3/8"X19 G3/8"X19 18 13.5 39.5 22
1SB-06-04 G3/8"X19 G1/4"X19 18 12 36 19
1SB-06-08 G3/8"X19 G1/2"X14 18 16 44 27
1SB-08 G1/2"X14 G1/2"X14 20 16 46 27
1SB-08-06 G1/2"X14 G3/8"X19 20 13.5 41.5 22
1SB-08-12 G1/2"X14 G3/4"X14 20 18.5 49.5 32
1SB-12 G3/4"X14 G3/4"X14 22 18.5 51.5 32
1SB-12-06 G3/4"X14 G3/8"X19 22 13.5 45.5 30
1SB-12-08 G3/4"X14 G1/2"X14 22 16 48 30
1SB-12-16 G3/4"X14 G1"X11 22 20.5 55.5 41
1SB-16 G1"X11 G1"X11 24 20.5 57.5 41
1SB-16-08 G1"X11 G1/2"X14 24 16 51 36
1SB-16-12 G1"X11 G3/4"X14 24 18.5 53.5 36
