Fitting accessories within BSPT threads: • BSP is BRITISH STANDARD PIPE – Also known as Whitworth 55° Thread Form • BSPT is BRITISH STANDARD PIPE TAPER – Thread form per AS 1722.1, BS 21, ISO 7 • BSPP is BRITISH STANDARD PIPE PARALLEL – Thread form per AS 1722.2, ISO 228
Fitting accessories within BSPT: The BSPT (tapered) male will mate with a BSPT (tapered) female, or a BSPOR (parallel) female. The BSPT male has tapered threads. When mating with either the BSPT (tapered) female or the BSPOR (parallel) female port, the seal is made on the threads. The BSPT connector is similar to, but not interchangeable with, the NPTF connector. The thread pitch is different in most cases, and the thread angle is 55° instead of the 60° angle found on NPTF threads.

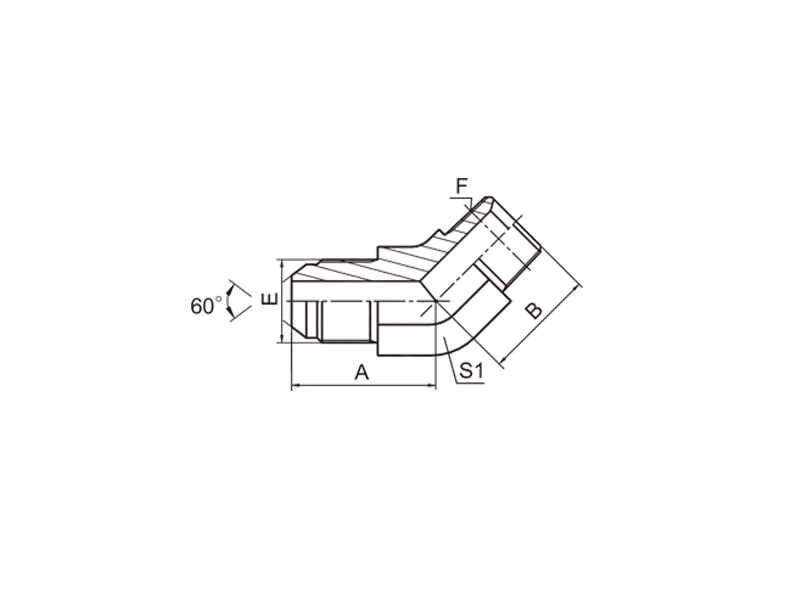

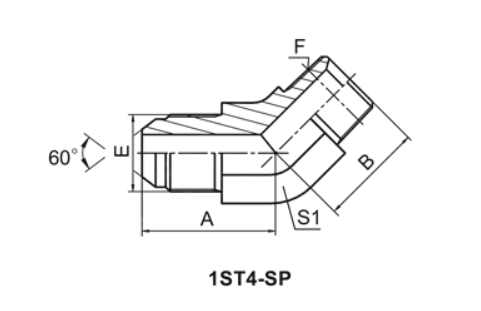

PART NO. | THREAD | DIMENSIONS | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
E | F | A | B | S1 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1ST4-02SP | G1/8"X28 | R1/8"X28 | 19 | 17 | 11 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1ST4-02-04SP | G1/8"X28 | R1/4"X19 | 19.8 | 21 | 14 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1ST4-04SP | G1/4"X19 | R1/4"X19 | 24 | 21 | 14 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1ST4-04-02SP | G1/4"X19 | R1/8"X28 | 24.5 | 17.5 | 14 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1ST4-04-06SP | G1/4"X19 | R3/8"X19 | 24.5 | 23 | 16 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1ST4-04-08SP | G1/4"X19 | R1/2"X14 | 26.5 | 29.5 | 22 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1ST4-06SP | G3/8"X19 | R3/8"X19 | 26 | 23 | 16 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1ST4-06-04SP | G3/8"X19 | R1/4"X19 | 26 | 21 | 16 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1ST4-06-08SP | G3/8"X19 | R1/2"X14 | 28.5 | 29.5 | 22 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1ST4-08SP | G1/2"X14 | R1/2"X14 | 31 | 29.5 | 22 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1ST4-08-06SP | G1/2"X14 | R3/8"X19 | 30.5 | 25 | 22 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1ST4-12SP | G3/4"X14 | R3/4"X14 | 34.5 | 30.5 | 27 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1ST4-12-08SP | G3/4"X14 | R1/2"X14 | 34 | 30 | 27 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1ST4-16SP | G1"X11 | R1"X11 | 37.5 | 38 | 33 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1ST4-16-12SP | G1"X11 | R3/4"X14 | 37.5 | 32 | 33 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1ST4-20SP | G1.1/4"X11 | R1.1/4"X11 | 44.5 | 43 | 41 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1ST4-24SP | G1.1/2"X11 | R1.1/2"X11 | 47.5 | 47 | 48 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1ST4-32SP | G2"X11 | R2"X11 | 54 | 53 | 63 |
