Carbon steel adapters of BSPP&BSPT threads: • BSP is BRITISH STANDARD PIPE – Also known as Whitworth 55° Thread Form • BSPT is BRITISH STANDARD PIPE TAPER – Thread form per AS 1722.1, BS 21, ISO 7 • BSPP is BRITISH STANDARD PIPE PARALLEL – Thread form per AS 1722.2, ISO 228

Model:1SG

Send Inquiry

Product Description

CARBON STEEL ADAPTER JIS GAS MALE 60°CONE / BSP MALE O-RING 1SG

Carbon steel adapters of 1SG is Popular couplings have British Standard Pipe (BSP) threads, also known as Whitworth threads.  These can be parallel threads (BSPP) with a 30° inverted flare or tapered threads (BSPT), with a 30° inverted flare. Port connections are usually made with BSPP threads and a soft metal cutting ring for sealing. The BSPP (parallel) male will mate with a BSPOR (parallel) female or a female port. The BSPP male has straight threads and a 30° seat. The BSPOR female has straight threads, a 30° seat, and O-ring. The female port has straight threads and a spotface. The seal on the port is made with an O-ring or soft metal washer on the male. The BSPP (parallel) connector is similar to, but not interchangeable with, the NPSM connector. The thread pitch is different in most sizes, and the thread angle is 55° instead of the 60° angle found on NPSM threads

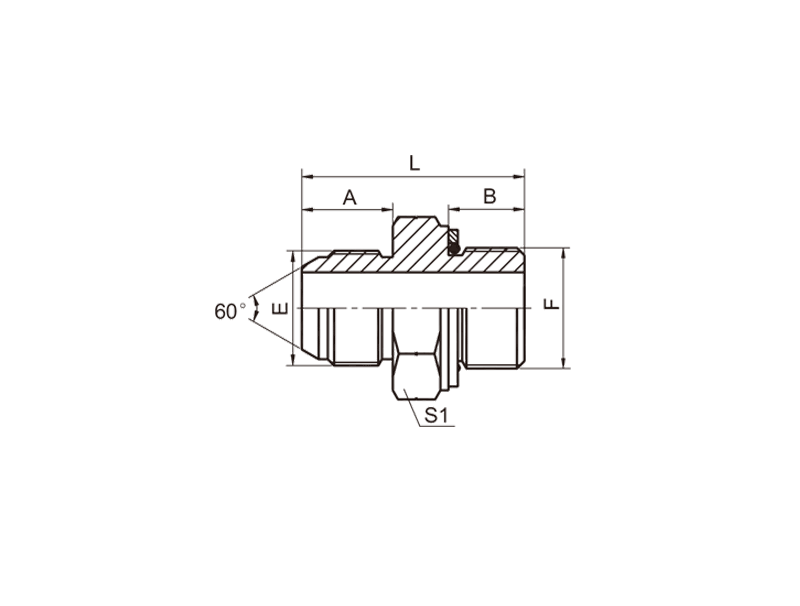

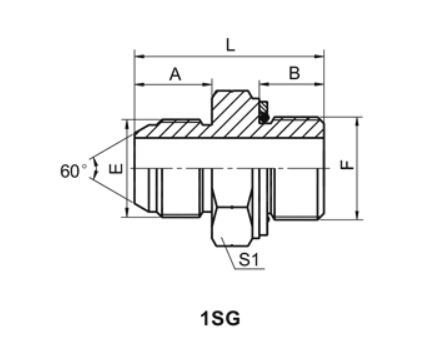

 PART NO.     THREAD  O-RING      DIMENSIONS
E F F END A B L S1
1SG-02 G1/8"X28 G1/8"X28 O011 12 9.5 29 14
1SG-04 G1/4"X19 G1/4"X19 O111 16 11 33.5 19
1SG-06 G3/8"X19 G3/8"X19 O113 18 11.5 37.5 22
1SG-08 G1/2"X14 G1/2"X14 O115 20 14 44 27
1SG-12 G3/4"X14 G3/4"X14 O119 22 15.5 48.5 32
1SG-16 G1"X11 G1"X11 O217 24 18 55 41
1SG-20 G1.1/4"X11 G1.1/4"X11 O222 27 20 59 50
1SG-24 G1.1/2"X11 G1.1/2"X11 O224 27 21.5 62.5 55

Note: F end is connected with DIN 3852 port.


Product Details

High quality hydraulic fitting can satisfy your different needs with its special quality and features.
1.
high quality Zinc plated,Zn-Ni plated,Cr3,Cr6 plated.
2.high precision.all edges without burrs,brake sharp edges.
3.competitive price.
4. MOQ:300PCS
5. Material: iron, carbon steel, stainless steel, other metals
6.Standard / specification: Standard or as per drawing and samples (OEM)
7. Size: as per customers' requests

Customized service: We are specialized in all kinds of hydraulic hose fittings,adaptors,ferrules,flanges,fitting accessories.

Deliver,Shipping And Serving

1.     Delivery:As general,we can guarantee the delivery within one month.

2.     Port of loading: Ningbo or Shanghai

3.     Samples Fee: We can offord the samples fee.
