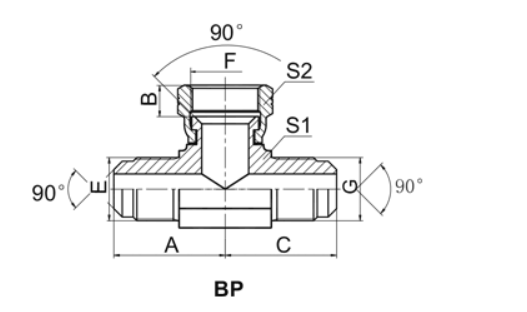

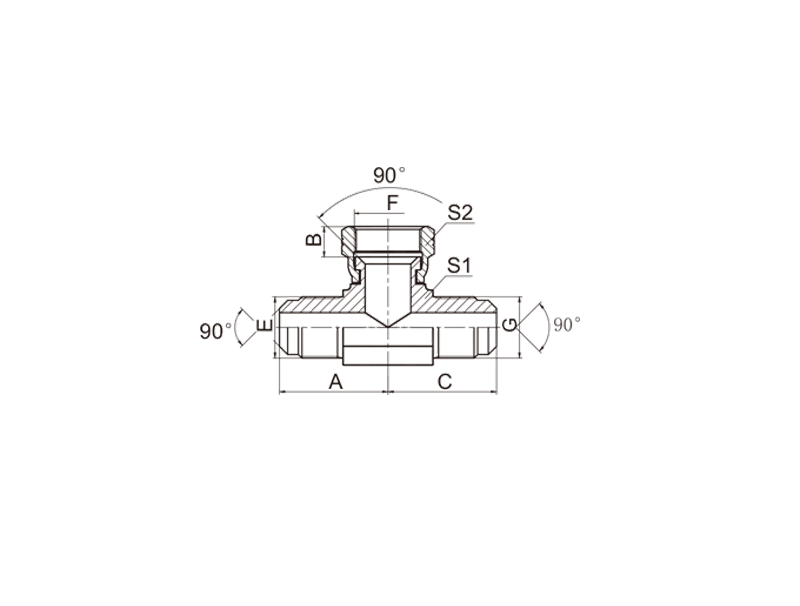

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC BP SAE MALE/SAE FEMALE/SAE MALE
| THREAD | DIMENSIONS | ||||||||||||||||||||||||||||||||||||||||||||||
| PART NO. | E | F | G | A | B | C | S1 | S2 | |||||||||||||||||||||||||||||||||||||||
| BP-04 | 7/16"X20 | 7/16"X20 | 7/16"X20 | 22.5 | 9 | 22.5 | 11 | 17 | |||||||||||||||||||||||||||||||||||||||
| BP-06 | 5/8"X18 | 5/8"X18 | 5/8"X18 | 30 | 11.3 | 30 | 16 | 22 | |||||||||||||||||||||||||||||||||||||||
| BP-08 | 3/4"X16 | 3/4"X16 | 3/4"X16 | 35 | 10.5 | 35 | 19 | 24 | |||||||||||||||||||||||||||||||||||||||
| BP-12 | 1.1/16"X14 | 1.1/16"X14 | 1.1/16"X14 | 46.5 | 14.3 | 46.5 | 27 | 32 | |||||||||||||||||||||||||||||||||||||||
