HYDRAULIC BK JIS METRIC MALE 60°CONE / JIS METRICF EMALE 60°SEAT BRANCH TEE
  • Air ProHYDRAULIC BK JIS METRIC MALE 60°CONE / JIS METRICF EMALE 60°SEAT BRANCH TEE

HYDRAULIC BK JIS METRIC MALE 60°CONE / JIS METRICF EMALE 60°SEAT BRANCH TEE

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials:stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC BK JIS METRIC MALE 60°CONE / JIS METRICF EMALE 60°SEAT BRANCH TEE

Model:BK

Send Inquiry

Product Description

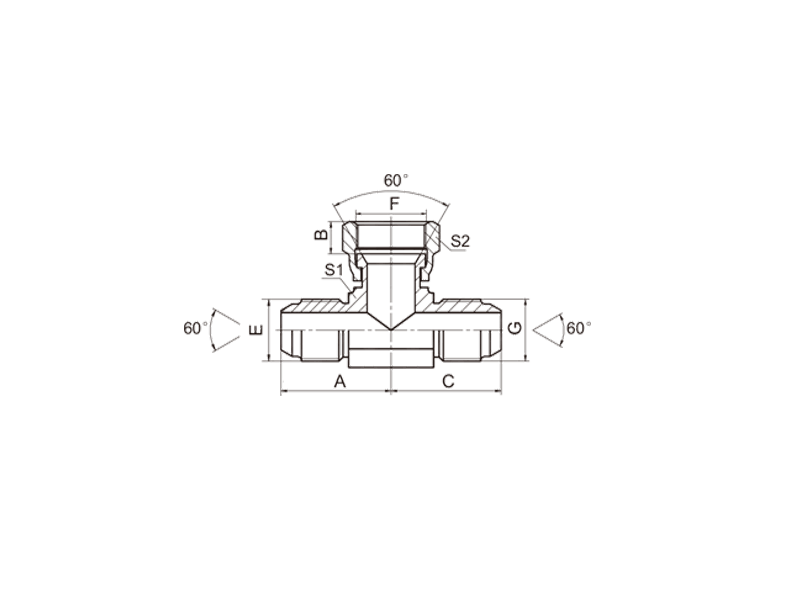

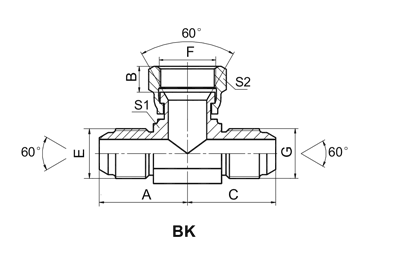

HYDRAULIC BK JIS METRIC MALE 60°CONE / JIS METRICF EMALE 60°SEAT BRANCH TEE



PART NO.  THREAD    DIMENSIONS
E F G A B C S1 S2
BK-14 M14X1.5 M14X1.5 M14X1.5 26.5 10.5 26.5 14 19
BK-16 M16X1.5 M16X1.5 M16X1.5 29.5 10 29.5 16 22
BK-18 M18X1.5 M18X1.5 M18X1.5 30.8 11.5 30.8 19 24
BK-22 M22X1.5 M22X1.5 M22X1.5 35.5 14 35.5 22 27
BK-24 M24X1.5 M24X1.5 M24X1.5 37 15 37 22 32
BK-30 M30X1.5 M30X1.5 M30X1.5 45 18.3 43 30 36
BK-33 M33X1.5 M33X1.5 M33X1.5 50 21.3 50 33 41
