HYDRAULIC BE METRIC MALE O-RING / METRIC FEMALE BRANCH TEE
  • HYDRAULIC BE METRIC MALE O-RING / METRIC FEMALE BRANCH TEE HYDRAULIC BE METRIC MALE O-RING / METRIC FEMALE BRANCH TEE

HYDRAULIC BE METRIC MALE O-RING / METRIC FEMALE BRANCH TEE

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials：stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC BE METRIC MALE O-RING / METRIC FEMALE BRANCH TEE

Model:BE

Send Inquiry

Product Description

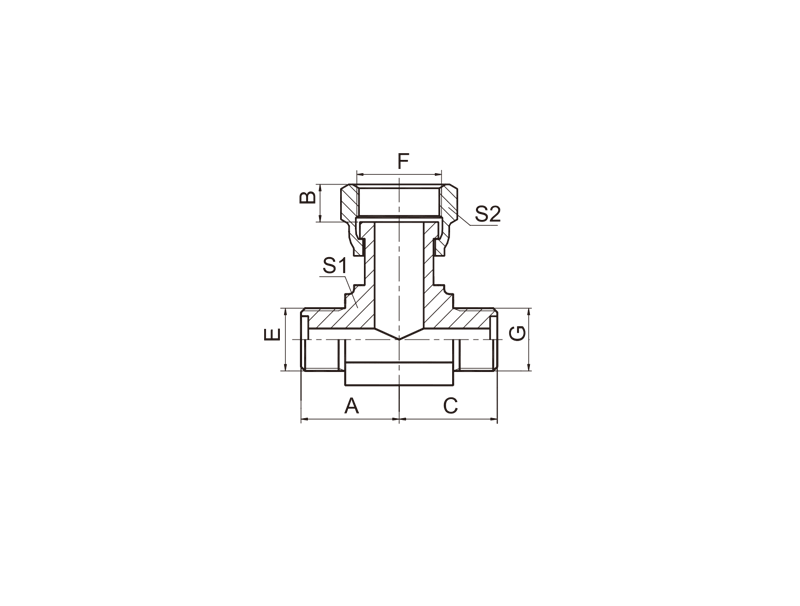

HYDRAULIC  BE METRIC MALE O-RING / METRIC FEMALE BRANCH TEE





 PART NO.  THREAD  O-RING   DIMENSIONS
E、F、G E、G A B C S1 S2
BE-14 M14X1.5 10X1.9 22.5 8.5 22.5 14 19
BE-16 M16X1.5 11X1.9 24 8.5 24 17 22
BE-18 M18X1.5 13X1.9 26 8.5 26 19 24
BE-22 M22X1.5 16X2.4 29 10 29 22 27
BE-27 M27X1.5 20X2.4 32.5 10 32.5 27 32
BE-30 M30X1.5 24X2.4 35.5 11 35.5 30 36
BE-36 M36X2 30X3.1 42 13 42 36 41
BE-39 M39X2 32X3.1 47.5 13 47.5 41 46
BE-42 M42X2 35X3.1 49.5 15 49.5 41 50
BE-45 M45X2 38X3.1 52.5 15 52.5 46 55
BE-52 M52X2 40X3.1 57 17 57 50 60
 Note：The parameter of O-Ring is ring outside diameter and ring width.
