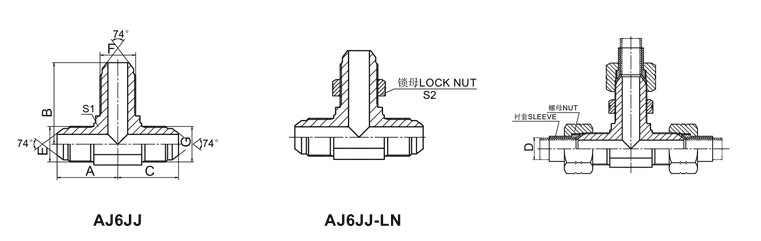

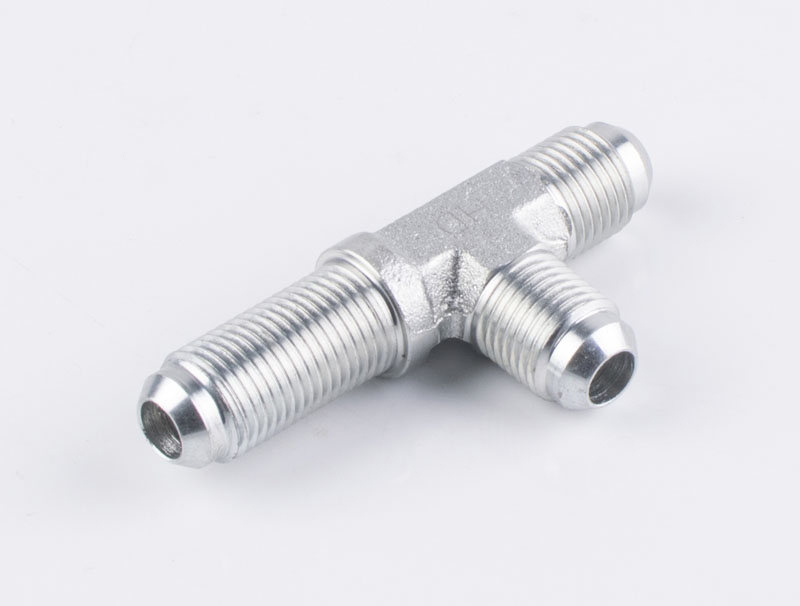

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials:stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC AJ6JJ JIC MALE 74° CONE
PART NO. |
THREAD | DIMENSIONS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
E | F | G | A | B | C | S1 | S2 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AJ6JJ-04 | 7/16"X20 | 7/16"X20 | 7/16"X20 | 24.5 | 40.4 | 24.5 | 11 | 17 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AJ6JJ-04-06-04 | 7/16"X20 | 9/16"X18 | 7/16"X20 | 26.4 | 46 | 26.4 | 14 | 22 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AJ6JJ-05 | 1/2"X20 | 1/2"X20 | 1/2"X20 | 26.6 | 43.7 | 26.6 | 14 | 19 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AJ6JJ-06 | 9/16"X18 | 9/16"X18 | 9/16"X18 | 26.9 | 46 | 26.9 | 14 | 22 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AJ6JJ-08 | 3/4"X16 | 3/4"X16 | 3/4"X16 | 32 | 53.5 | 32 | 19 | 24 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AJ6JJ-10 | 7/8"X14 | 7/8"X14 | 7/8"X14 | 37.8 | 60.7 | 37.8 | 22 | 30 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AJ6JJ-12 | 1.1/16"X12 | 1.1/16"X12 | 1.1/16"X12 | 44.2 | 67.8 | 44.2 | 27 | 36 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AJ6JJ-14 | 1.3/16"X12 | 1.3/16"X12 | 1.3/16"X12 | 46.2 | 71 | 46.2 | 30 | 38 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AJ6JJ-16 | 1.5/16"X12 | 1.5/16"X12 | 1.5/16"X12 | 49 | 71 | 49 | 33 | 41 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AJ6JJ-20 | 1.5/8"X12 | 1.5/8"X12 | 1.5/8"X12 | 55.3 | 79.2 | 55.3 | 41 | 50 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AJ6JJ-24 | 1.7/8"X12 | 1.7/8"X12 | 1.7/8"X12 | 63.5 | 86.9 | 63.5 | 48 | 55 |
Note: In case if you are interested to order the adapter with lock nut .please insert suffix “LN” after our partno,forexample 6J-12LN。
Nut and sleeve should be ordered separately,The nut NB200 and sleeeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube.
