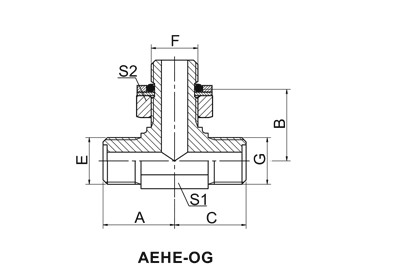

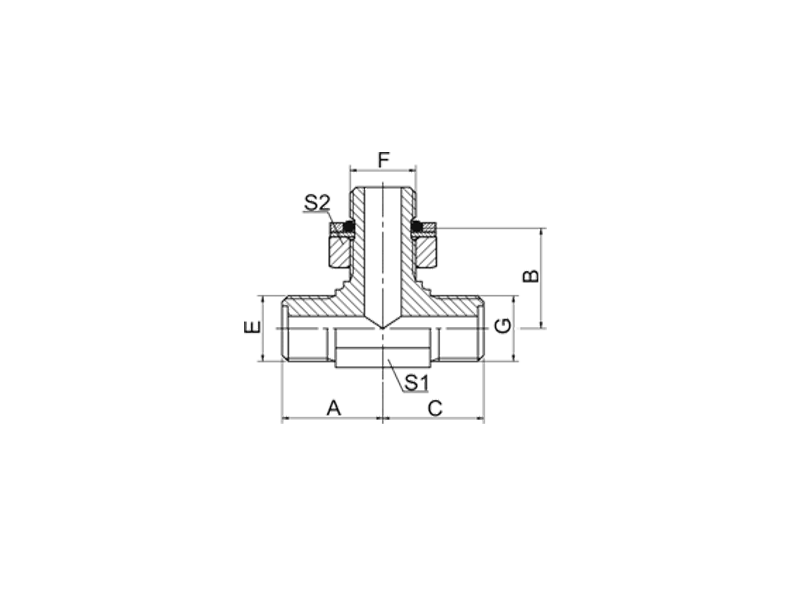

HYDRAULIC AEHE-OG METRIC MALE O-RING / METIRC MALE ADJUSTABLE STUD END ISO 6149-2 BRANCH TEE

PART NO.	THREAD		O-RING		DIMENSIONS
	E、G	F	E、G	F	A	B	C	S1	S2
AEHE-12-10-12OG	M12X1.25	M10X1	10X1.9	O08.1X1.6	20.5	28.5	20.5	12	14
AEHE-14-12-14OG	M14X1.5	M12X1.5	11X1.9	O09.3X2.4	22.5	33.2	22.5	14	17
AEHE-16-14-16OG	M16X1.5	M14X1.5	13X1.9	O11.3X2.4	24	36	24	17	19
AEHE-18-16-18OG	M18X1.5	M16X1.5	16X2.4	O13.3X2.4	26	39	26	19	22
AEHE-22-18-22OG	M22X1.5	M18X1.5	18X2.4	O15.3X2.4	29	44	29	22	24
AEHE-27-22-27OG	M27X1.5	M22X1.5	20X2.4	O19.3X2.4	32.5	48	32.5	27	27
AEHE-30-27-30OG	M30X1.5	M27X2	24X2.4	O23.5X3.0	35.5	57	35.5	30	32
AEHE-36-33-36OG	M36X2	M33X2	30X3.1	O29.2X3.0	42	60.5	42	36	41
AEHE-39-33-39OG	M39X2	M33X2	35X3.1	O29.2X3.0	47.5	64	47.5	41	41
AEHE-42-42-42OG	M42X2	M42X2	38X3.1	O38.5X3.0	49.5	65	49.5	41	50
AEHE-45-42-45OG	M45X2	M42X2	40X3.1	O38.5X3.0	52.5	67.5	52.5	46	50

Note:

1 The parameters of E、F end O-Ring are ring outside diameter and ring width.

2 G end is connected with ISO 6149-1 port.
