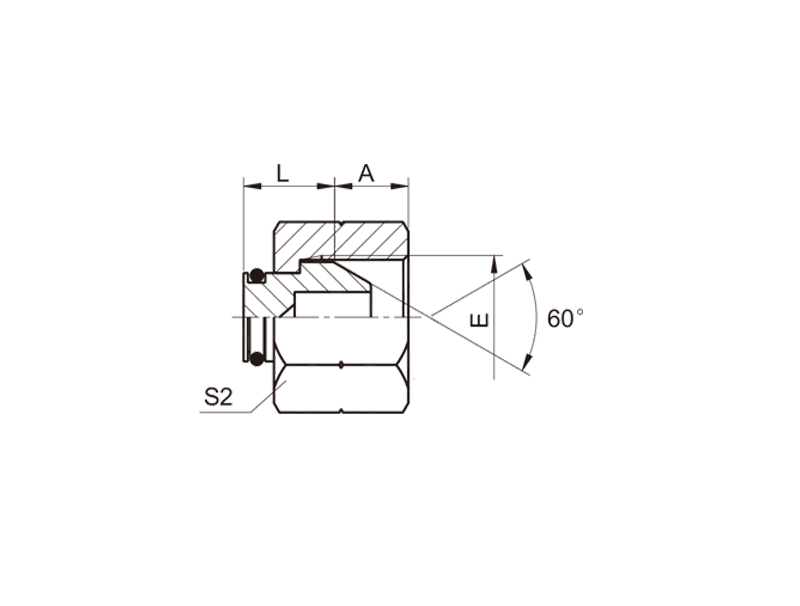

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials:stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 9B BSP FEMALE 60°CONE PLUG
THREAD | DIMENSIONS | |||||||||||||||||||||||||||||||||||||||||
E | A | L | S2 | |||||||||||||||||||||||||||||||||||||||
PART NO. | ||||||||||||||||||||||||||||||||||||||||||
9B-02 | G1/8"X28 | 5.5 | 11.5 | 14 | ||||||||||||||||||||||||||||||||||||||
9B-04 | G1/4"X19 | 5.5 | 13.5 | 19 | ||||||||||||||||||||||||||||||||||||||
9B-06 | G3/8"X19 | 6.3 | 14.5 | 22 | ||||||||||||||||||||||||||||||||||||||
9B-08 | G1/2"X14 | 7.5 | 16 | 27 | ||||||||||||||||||||||||||||||||||||||
9B-10 | G5/8"X14 | 9.5 | 16.5 | 30 | ||||||||||||||||||||||||||||||||||||||
9B-12 | G3/4"X14 | 10.9 | 17.5 | 32 | ||||||||||||||||||||||||||||||||||||||
9B-16 | G1"X11 | 11.7 | 19 | 41 | ||||||||||||||||||||||||||||||||||||||
9B-20 | G1.1/4"X11 | 11 | 21.5 | 50 | ||||||||||||||||||||||||||||||||||||||
9B-24 | G1.1/2"X11 | 13 | 22 | 55 | ||||||||||||||||||||||||||||||||||||||
9B-32 | G2"X11 | 16 | 26.5 | 70 |
