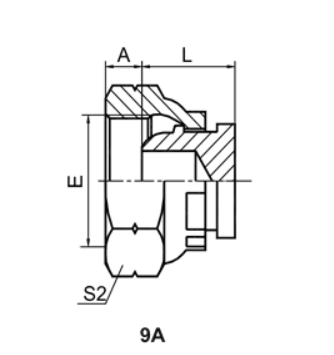

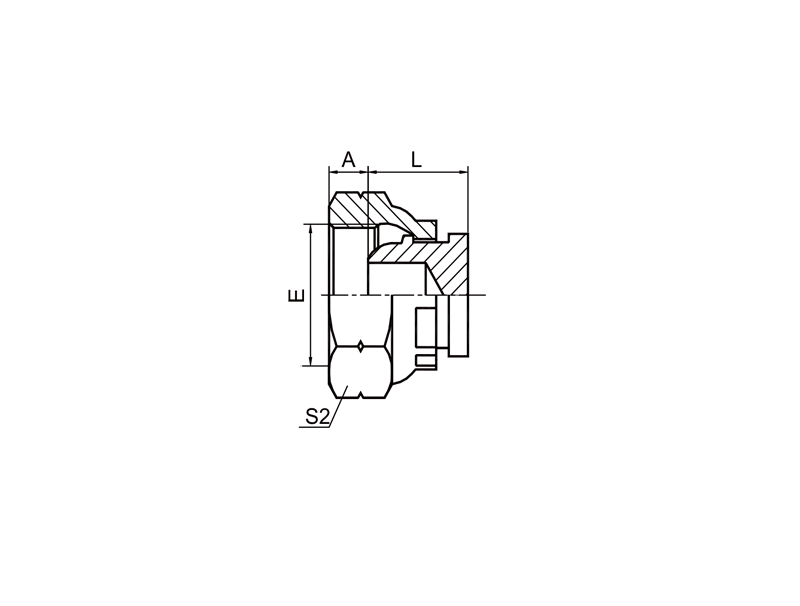

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials:stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 9A BSP FEMALE MULTISEAL PLUG
PART NO. | THREAD | DIMENSIONS | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
E | A | L | S2 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
9A-02 | G1/8"X28 | 2 | 14.5 | 14 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
9A-04 | G1/4"X19 | 4 | 15 | 19 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
9A-06 | G3/8"X19 | 5 | 16 | 22 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
9A-08 | G1/2"X14 | 6 | 18 | 27 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
9A-10 | G5/8"X14 | 8 | 19 | 30 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
9A-12 | G3/4"X14 | 9 | 20 | 32 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
9A-16 | G1"X11 | 10.5 | 21 | 41 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
9A-20 | G1.1/4"X11 | 10 | 23.5 | 50 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
9A-24 | G1.1/2"X11 | 11 | 25 | 55 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
9A-32 | G2"X11 | 15 | 27 | 70 |
