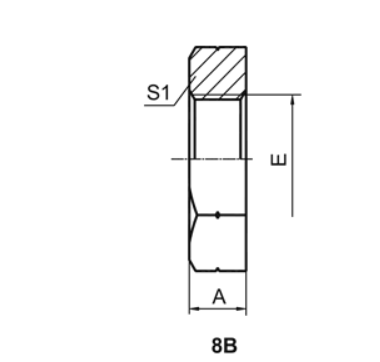

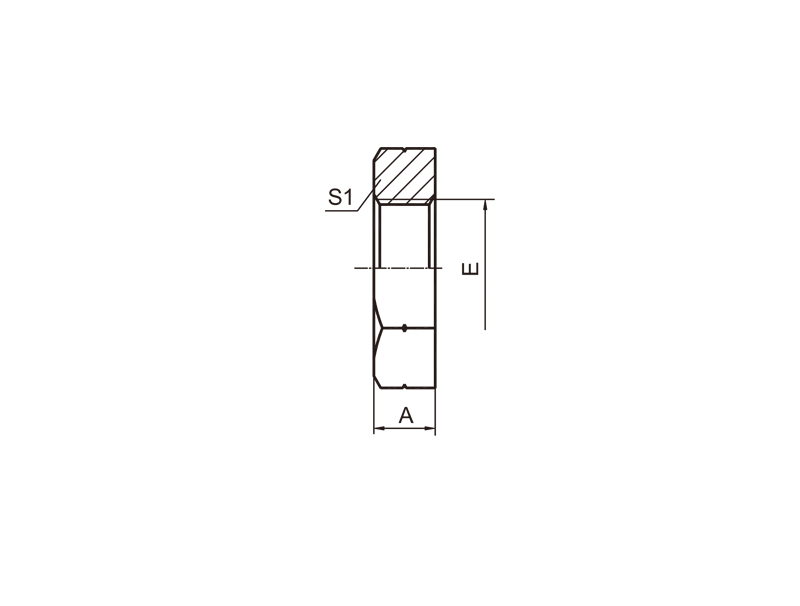

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials:stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 8B BSP LOCK NUT
PART NO. | THREAD | DIMENSIONS | ||||||||||||||||||||||||||||||||||||||||
E | A | S1 | ||||||||||||||||||||||||||||||||||||||||
8B-02 | G1/8"X28 | 5.5 | 14 | |||||||||||||||||||||||||||||||||||||||
8B-04 | G1/4"X19 | 6.5 | 19 | |||||||||||||||||||||||||||||||||||||||
8B-06 | G3/8"X19 | 7 | 22 | |||||||||||||||||||||||||||||||||||||||
8B-08 | G1/2"X14 | 9 | 27 | |||||||||||||||||||||||||||||||||||||||
8B-10 | G5/8"X14 | 9 | 30 | |||||||||||||||||||||||||||||||||||||||
8B-12 | G3/4"X14 | 10.5 | 32 | |||||||||||||||||||||||||||||||||||||||
8B-16 | G1"X11 | 10.5 | 41 | |||||||||||||||||||||||||||||||||||||||
8B-20 | G1.1/4"X11 | 10.5 | 50 | |||||||||||||||||||||||||||||||||||||||
8B-24 | G1.1/2"X11 | 10.5 | 55 | |||||||||||||||||||||||||||||||||||||||
8B-32 | G2"X11 | 10.5 | 70 |
