HYDRAULIC 88191 90°JIS FLANGE
  • Air ProHYDRAULIC 88191 90°JIS FLANGE

HYDRAULIC 88191 90°JIS FLANGE

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials:stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 88191 90°JIS FLANGE

Model:88191

Send Inquiry

Product Description

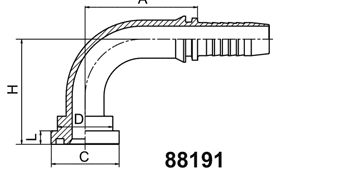

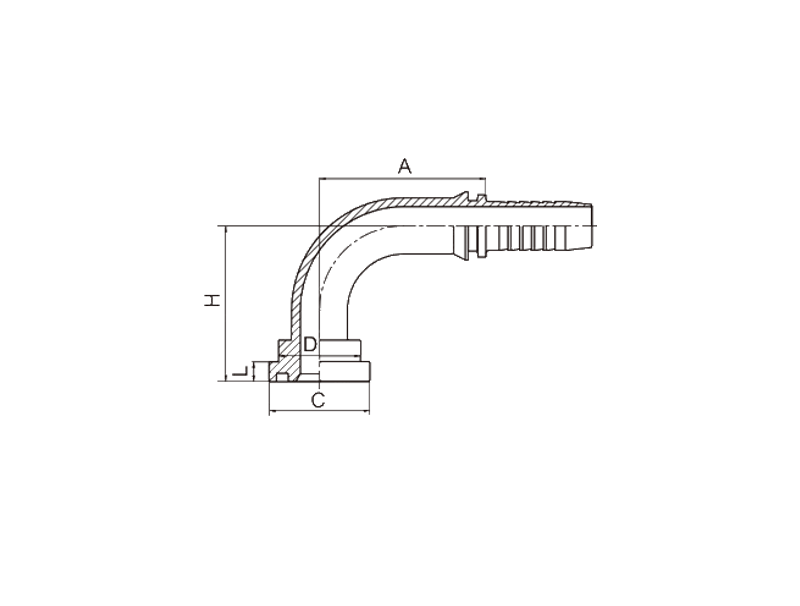

HYDRAULIC 88191 90°JIS FLANGE



 PART NO.  FLANGE SIZE  HOSE BORE  DIMENSIONS
DN DASH A C D H L
88191-10-08 5/8" 12 08 41 34.2 27.8 48 6.7
88191-10-10 5/8" 16 10 56.5 34.2 27.8 52.5 6.7
88191-10-12 5/8" 20 12 65.5 34.2 27.8 62 6.7


NOTE:1.For use with braided hoses. 2.If use with spiral hoses.hose fitting series number is 88192-XX-XX.
