HYDRAULIC 10711 GB METRIC MALE 74° CONE
  • Air ProHYDRAULIC 10711 GB METRIC MALE 74° CONE

HYDRAULIC 10711 GB METRIC MALE 74° CONE

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials:stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 10711 GB METRIC MALE 74° CONE

Model:10711

Send Inquiry

Product Description

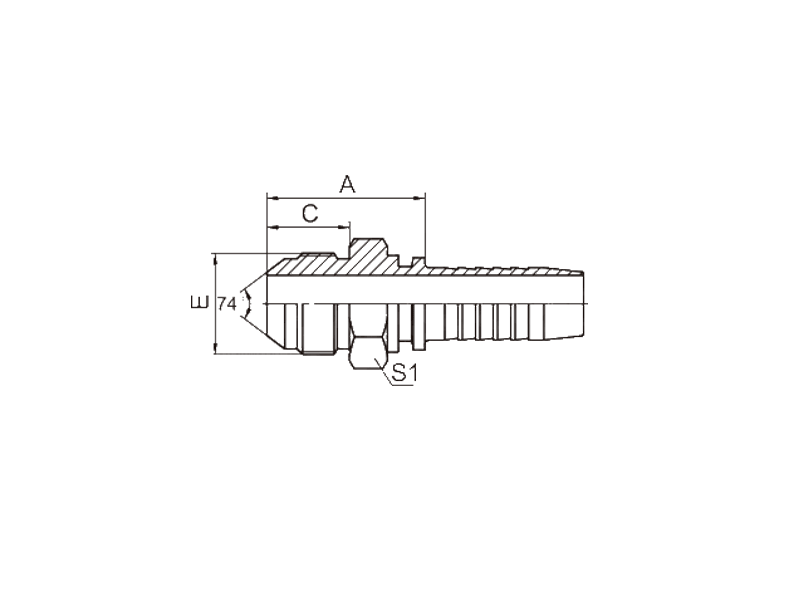

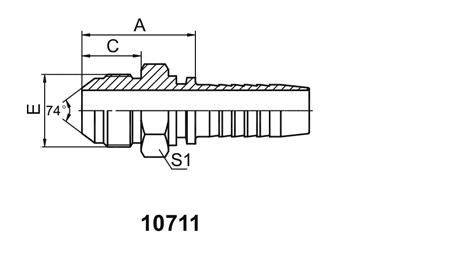

HYDRAULIC 10711 GB METRIC MALE 74° CONE


PART NO. THREAD E  HOSE BORE DIMENSIONS
DN DASH A C S1
10711-10-02 M10X1 4 02 23 12.5 14
10711-10-03 M10X1 5 03 23 12.5 14
10711-12-03 M12X1.5 5 03 26.5 15.7 14
10711-12-03C M12X1.25 5 03 24.5 14 14
10711-14-04 M14X1.5 6 04 30.5 18 17
10711-14-06 M14X1.5 10 06 30.5 18 17
10711-16-05 M16X1.5 8 05 31.5 19 17
10711-16-06 M16X1.5 10 06 31.5 19 17
10711-18-06 M18X1.5 10 06 31.5 19 19
10711-22-08 M22X1.5 12 08 35 19.5 24
10711-24-08 M24X1.5 12 08 37 20 27
10711-27-10 M27X1.5 16 10 38.5 20.5 30
10711-30-12 M30X1.5 20 12 42.5 23 32
10711-30-12E M30X2 20 12 42.5 26 32
10711-33-12 M33X2 20 12 45 26 36
10711-36-14 M36X2 22 14 45 26 38
10711-39-16 M39X2 25 16 48 27.5 41
10711-42-20 M42X2 32 20 52 28.5 46
10711-45-20 M45X2 32 20 52 28.5 46

NOTE:

1.For use with braided hoses.

2.If use with spiral hoses.hose fitting series number is 10712-XX-XX.
