HYDRAULIC 10311 O-RING METRIC MALE FLAT SEAL
  • HYDRAULIC 10311 O-RING METRIC MALE FLAT SEAL HYDRAULIC 10311 O-RING METRIC MALE FLAT SEAL

HYDRAULIC 10311 O-RING METRIC MALE FLAT SEAL

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials:stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 10311 O-RING METRIC MALE FLAT SEAL

Model:10311

Send Inquiry

Product Description

HYDRAULIC 10311 O-RING METRIC MALE FLAT SEAL

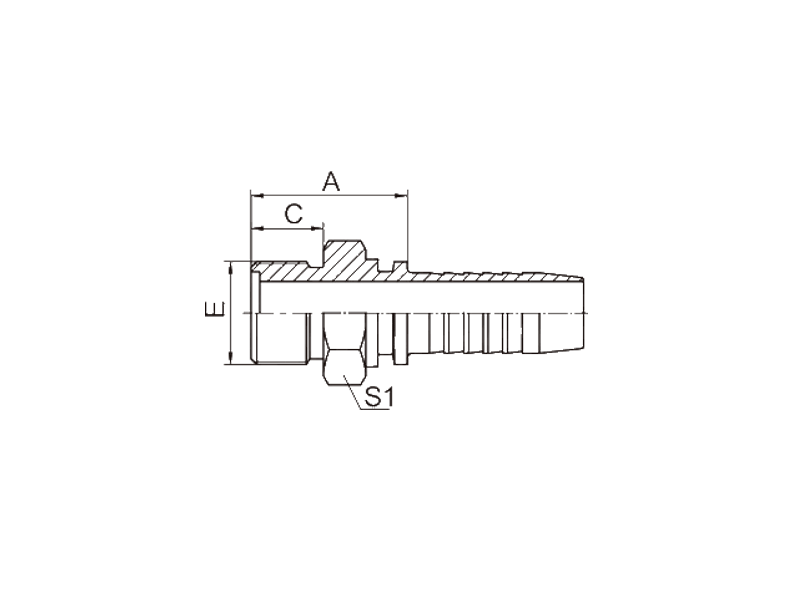

PART NO. THREAD E  HOSE BORE DIMENSIONS
DN DASH A C S1
10311-12-04 M12X1.25 6 04 22.5 10 14
10311-14-04 M14X1.5 6 04 23.5 11 14
10311-16-04 M16X1.5 6 04 23.5 11 17
10311-16-05 M16X1.5 8 05 23.5 11 17
10311-16-06 M16X1.5 10 06 23.5 11 17
10311-18-06 M18X1.5 10 06 23.5 11 19
10311-22-05 M22X1.5 8 05 27 12 24
10311-22-06 M22X1.5 10 06 26 12 24
10311-22-08 M22X1.5 12 08 26.5 12 24
10311-27-10 M27X1.5 16 10 31.5 13 30
10311-30-12 M30X1.5 20 12 33.5 14 32
10311-36-12 M36X2 20 12 35.5 16 38
10311-36-14 M36X2 22 14 35.5 16 38
10311-39-16 M39X2 25 16 39 16 41
10311-45-20 M45X2 32 20 44.5 20 46
10311-52-24 M52X2 40 24 47.5 22 55
10311-64-32 M64X2 50 32 52.5 27 65

NOTE:

1.For use with braided hoses.

2.If use with spiral hoses.hose fitting series number is 10312-XX-XX.
