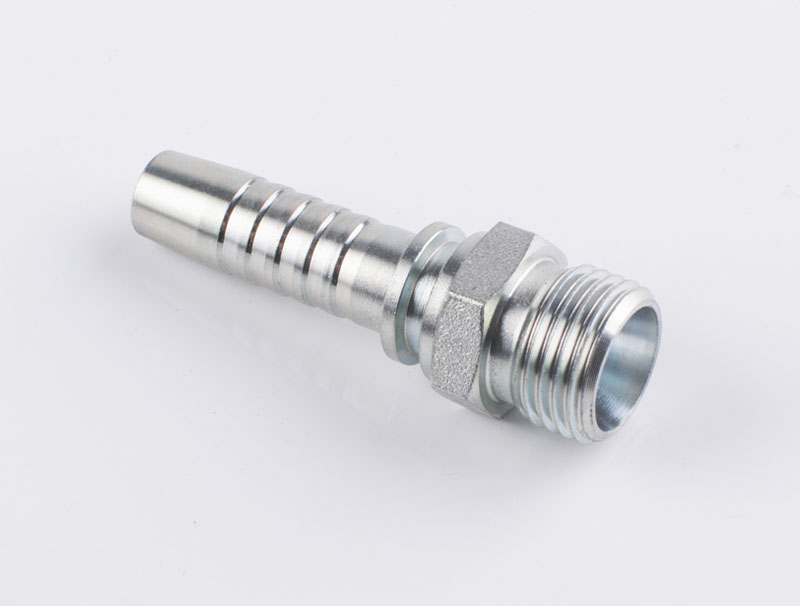

HYDRAULIC 10411 METRIC MALE 24° CONE SEAT L.T. (DIN 3853)
  • Air ProHYDRAULIC 10411 METRIC MALE 24° CONE SEAT L.T. (DIN 3853)

HYDRAULIC 10411 METRIC MALE 24° CONE SEAT L.T. (DIN 3853)

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials:stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 10411 METRIC MALE 24° CONE SEAT L.T. (DIN 3853)

Model:10411

Send Inquiry

Product Description

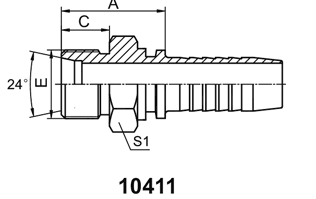

HYDRAULIC 10411 METRIC MALE 24° CONE SEAT L.T. (DIN 3853)


 PART NO.  THREAD E  HOSE BORE  TUBEO.D.  DIMENSIONS
DN DASH A C S1
10411-12-04 M12X1.5 6 04 6 20.5 10 12
10411-14-04 M14X1.5 6 04 8 20.5 10 14
10411-14-05 M14X1.5 8 05 8 21.5 10 14
10411-16-04 M16X1.5 6 04 10 22.5 11 17
10411-16-05 M16X1.5 8 05 10 22.5 11 17
10411-16-06 M16X1.5 10 06 10 22.5 11 17
10411-18-05 M18X1.5 8 05 12 23.5 11 19
10411-18-06 M18X1.5 10 06 12 21.5 11 19
10411-22-06 M22X1.5 10 06 15 24.5 12 24
10411-22-08 M22X1.5 12 08 15 26 12 24
10411-26-08 M26X1.5 12 08 18 26.5 12 27
10411-26-10 M26X1.5 16 10 18 27 12 27
10411-27-10 M27X1.5 16 10 18 32 14 30
10411-30-10 M30X2 16 10 22 29 14 32
10411-30-12 M30X2 20 12 22 29 14 32
10411-36-16 M36X2 25 16 28 31.5 14 38
10411-45-20 M45X2 32 20 35 36 16 46
10411-52-24 M52X2 40 24 42 38 16 55

NOTE:

1.For use with braided hoses.

2.If use with spiral hoses.hose fitting series number is 10412-XX-XX.
