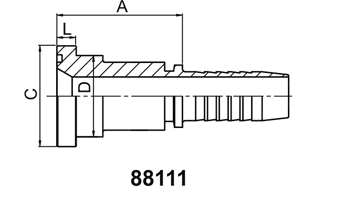

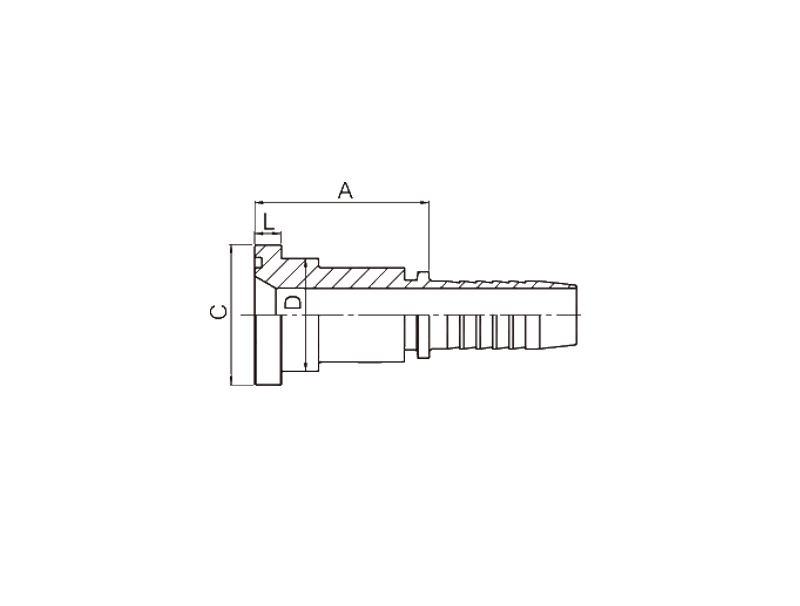

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials:stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 88111 JIS FLANGE
PART NO. | FLANGE SIZE | HOSE BORE | DIMENSIONS | ||||
DN | DASH | A | C | D | L | ||
88111-10-08 | 5/8" | 12 | 08 | 45 | 34.2 | 27.8 | 6.7 |
88111-10-10 | 5/8" | 16 | 10 | 46 | 34.2 | 27.8 | 6.7 |
88111-10-12 | 5/8" | 20 | 12 | 46 | 34.2 | 27.8 | 6.7 |
NOTE:
1.For use with braided hoses.
2.If use with spiral hoses.hose fitting series number is 88112-XX-XX.
