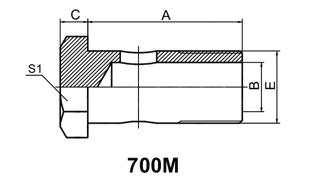

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials:stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 700M METRIC BOLT(DIN 7643)
PART NO. | THREAD E | DIMENSIONS | |||
A | B | c | S1 | ||
700M-10 | M10X1 | 19 | 5.5 | 6 | 14 |
700M-12 | M12X1.5 | 24 | 7 | 6 | 17 |
700M-14 | M14X1.5 | 26 | 9 | a | 19 |
700M-16 | M16X1.5 | 28 | 11 | 6 | 22 |
700M-18 | M18X1.5 | 32 | 13 | 6 | 24 |
700M-22 | M22X1.5 | 39 | 16 | 7 | 27 |
700M-26 | M26X1.5 | 45 | 20 | 7 | 32 |
700M-30 | M30X1.5 | 51 | 24 | 7 | 36 |
