JIS GAS MALE 60°CONE BULKHEAD 6S
  • Air ProJIS GAS MALE 60°CONE BULKHEAD 6S

JIS GAS MALE 60°CONE BULKHEAD 6S

We offering JIS gas male bulkhead fittings.The main hydraulic fitting material is carbon steel. Alternative materials including free cutting steel, stainless steel, brass, aluminum alloy and others are available. And we can supply all kinds of forging parts make special by customer's requirements.

Model:6S

Send Inquiry

Product Description

JIS GAS MALE 60°CONE BULKHEAD 6S


Japanese Industrial Standard JIS 300 Flare(JIS GAS MALE BULKHEAD)

The male half has a 30° seat with a straight thread, while the female has a 300 seat with a straight thread as well. This connection and the 37° Flare are alike, however it's 30° seat and BSPP-like thread dimensions make it different from the American 37° Flare.

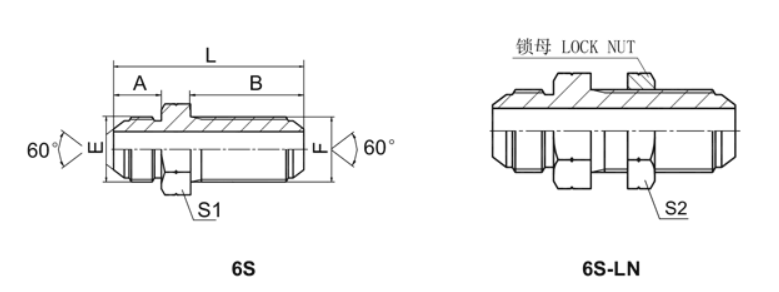

 PART NO.     THREAD      DIMENSIONS
E F A B L S1 S2
6S-04 G1/4"X19 G1/4"X19 16 32 56 19 19
6S-06 G3/8"X19 G3/8"X19 18 36 62 22 22
6S-08 G1/2"X14 G1/2"X14 20 40 70 27 27
6S-12 G3/4"X14 G3/4"X14 22 41 74 32 32
6S-16 G1"X11 G1"X11 24 45 88 41 41

Note: In case if you are interested to order in complete set with lock nut, it is necessary to insert suffix“LN” after our part no., for example 6S-16LN,The lock nut no.is 8B.


Product Details

High quality hydraulic fitting can satisfy your different needs with its special quality and features.
1.
high quality Zinc plated,Zn-Ni plated,Cr3,Cr6 plated.
2.high precision.all edges without burrs,brake sharp edges.
3.competitive price.
4. MOQ:300PCS
5. Material: iron, carbon steel, stainless steel, other metals
6.Standard / specification: Standard or as per drawing and samples (OEM)
7. Size: as per customers' requests

Customized service: We are specialized in all kinds of hydraulic hose fittings,adaptors,ferrules,flanges,fitting accessories.

Deliver,Shipping And Serving

1.     Delivery:As general,we can guarantee the delivery within one month.

2.     Port of loading: Ningbo or Shanghai

3.     Samples Fee: We can offord the samples fee.
