HYDRAULIC 6Q9 90°ELBOW METRIC MALE 74°CONE BULKHEAD
  • Air ProHYDRAULIC 6Q9 90°ELBOW METRIC MALE 74°CONE BULKHEAD

HYDRAULIC 6Q9 90°ELBOW METRIC MALE 74°CONE BULKHEAD

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials:stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 6Q9 90°ELBOW METRIC MALE 74°CONE BULKHEAD

Model:6Q9

Send Inquiry

Product Description

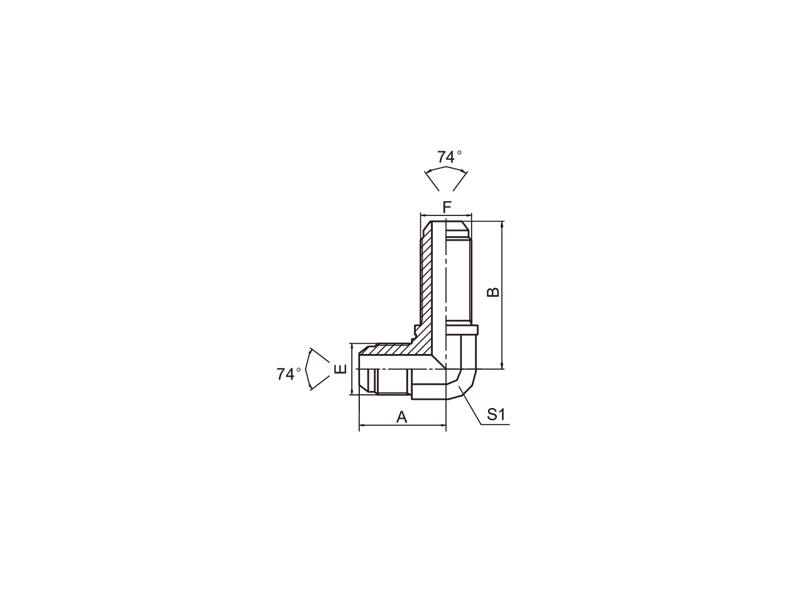

HYDRAULIC 6Q9 90°ELBOW METRIC MALE 74°CONE BULKHEAD



 PART NO.   THREAD TUBE O.D.   DIMENSIONS
E F D1,D2 A B S1 S2 S3 ,S4
6Q9-12 M12X1.5 M12X1.5 6 25.5 52 11 17 14
6Q9-14 M14X1.5 M14X1.5 8 30.2 56 14 19 17
6Q9-16 M16X1.5 M16X1.5 10 32 58 16 22 19
6Q9-18 M18X1.5 M18X1.5 12 34 62 19 24 22
6Q9-22 M22X1.5 M22X1.5 14 37.5 64 22 27 27
6Q9-27 M27X1.5 M27X1.5 18 41.5 72 27 32 32
6Q9-30 M30X1.5 M30X1.5 20 45.8 78 30 36 36
6Q9-33 M33X2 M33X2 22 51.5 82 33 41 38
6Q9-36 M36X2 M36X2 25 51.5 86 36 41 41
6Q9-39 M39X2 M39X2 28 55.5 88 41 46 46
6Q9-42 M42X2 M42X2 32 57 95 41 50 50
6Q9-45 M45X2 M45X2 34 62.5 96 48 55 55

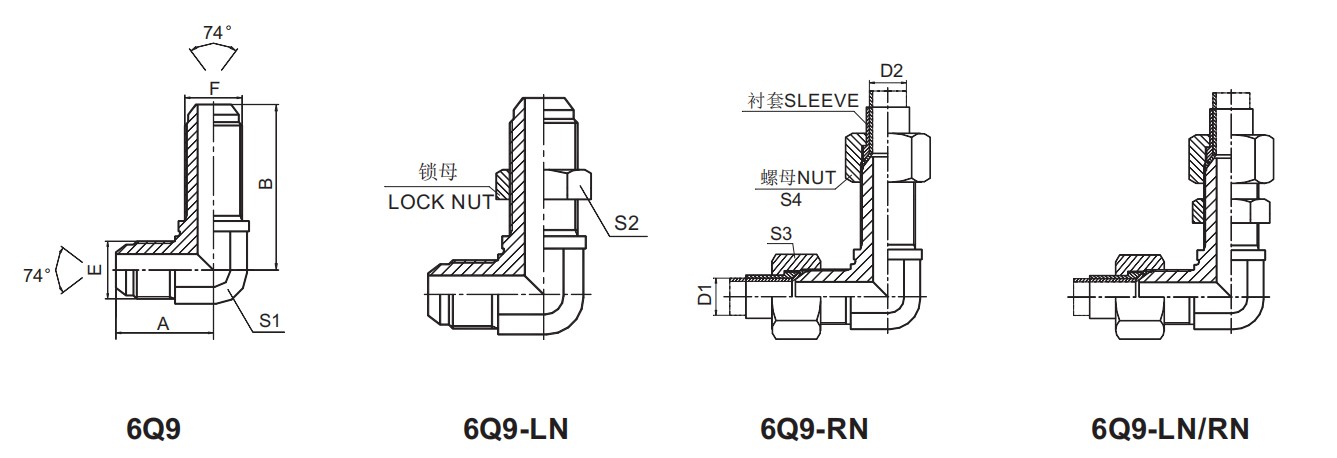

Note:In case if you are interested to order the adapter with lock nut,please insert suffix "LN" after our part no., for example 6Q-18LN; order the adapter with sleeve and nut, please insert suffix "RN" after our part no.,for example 6Q-18RN;order the adapter with lock nut and sleeve and nut, insert suffix "LN/RN" after part no.,for example 6Q-18LN/RN;The sleeve NO. is NB500-Q and the nut NO. is NB200-Q and the lock nut no. is 8C。
