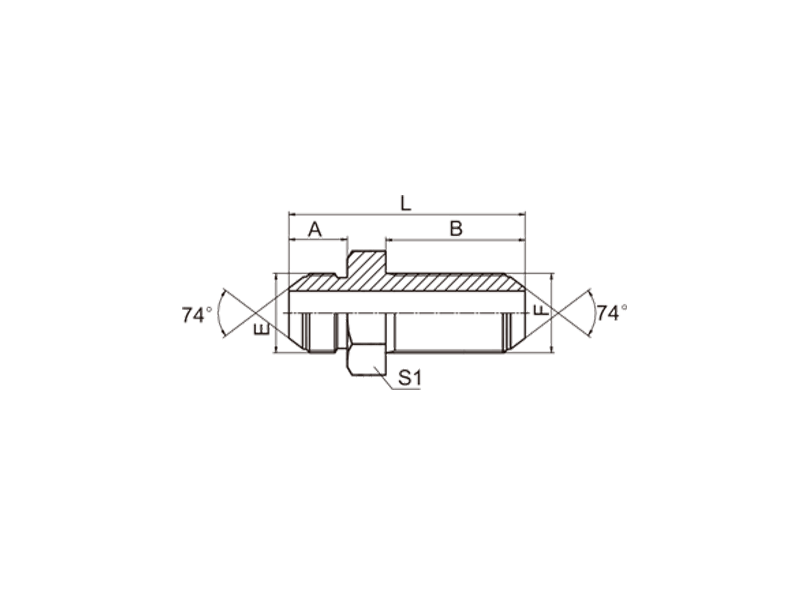

HYDRAULIC 6Q METRIC MALE 74°CONE BULKHEAD

PART NO.	THREAD		TUBE O.D.	DIMENSIONS
	E	F	D1 ， D2	A	B	L	S1	S2	S3 ， S4
6Q-10	M10X1	M10X1	5	12.5	34	52.5	14	14	14
6Q-12	M12X1.5	M12X1.5	6	15.7	38	59.7	17	17	14
6Q-14	M14X1.5	M14X1.5	8	17	40	64	17	19	17
6Q-16	M16X1.5	M16X1.5	10	18	41	65	19	22	19
6Q-18	M18X1.5	M18X1.5	12	18	43	69	24	24	22
6Q-22	M22X1.5	M22X1.5	14	19.5	44	73.5	27	27	27
6Q-24	M24X1.5	M24X1.5	16	20	45	75	27	30	30
6Q-27	M27X1.5	M27X1.5	18	20	48	78	30	32	32
6Q-30	M30X1.5	M30X1.5	20	23	53	87	34	36	36
6Q-33	M33X2	M33X2	22	26	55	92	36	41	38
6Q-36	M36X2	M36X2	25	25	56	94	41	41	41
6Q-39	M39X2	M39X2	28	26	58	97	41	46	46
6Q-42	M42X2	M42X2	32	28.5	59	102.5	50	50	50
6Q-45	M45X2	M45X2	34	28.5	60	103.5	50	50	55

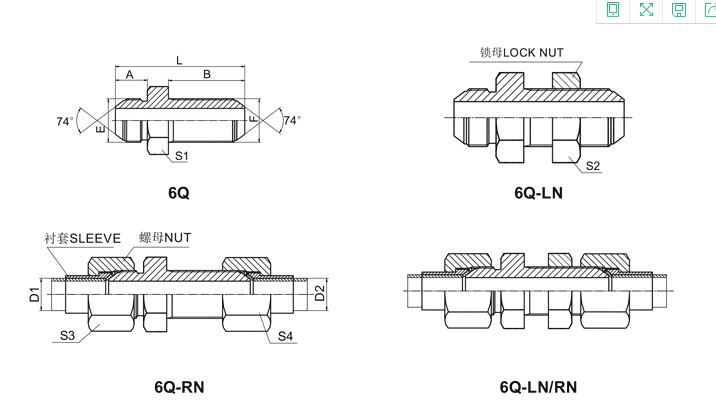

Note：In case if you are interested to order the adapter with lock nut,please insert suffix "LN" after our part no.,for example 6Q-18LN；order the adapter with sleeve and nut, please insert suffix "RN" after our part no.,for example 6Q-18RN；order the adapter with lock nut and sleeve and nut, insert suffix "LN/RN" after part no.,for example 6Q-18LN/RN；The sleeve NO. is NB500-Q and the nut NO. is NB200-Q and the lock nut no. is 8C。
