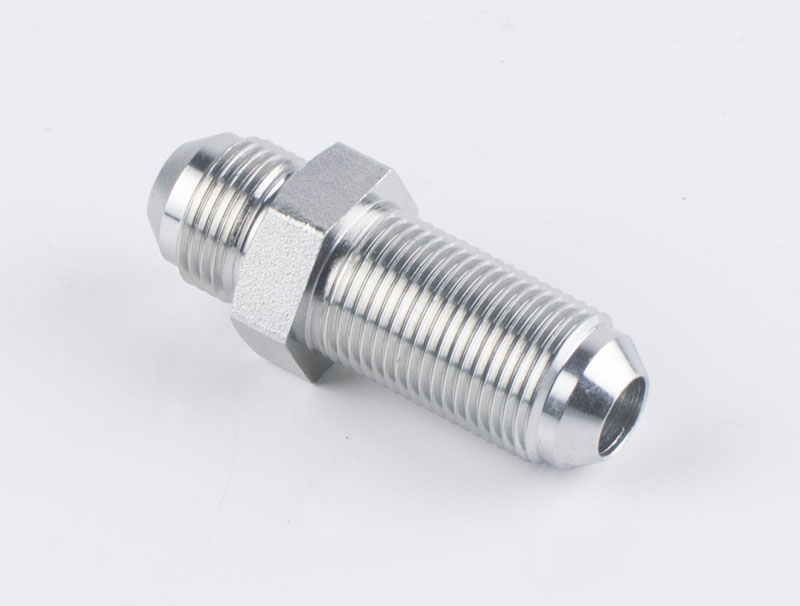

HYDRAULIC 6J JIC MALE 74° CONE BULKHEAD
  • Air ProHYDRAULIC 6J JIC MALE 74° CONE BULKHEAD

HYDRAULIC 6J JIC MALE 74° CONE BULKHEAD

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials:stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 6J JIC MALE 74° CONE BULKHEAD

Model:6J

Send Inquiry

Product Description

HYDRAULIC 6J JIC MALE 74° CONE BULKHEAD

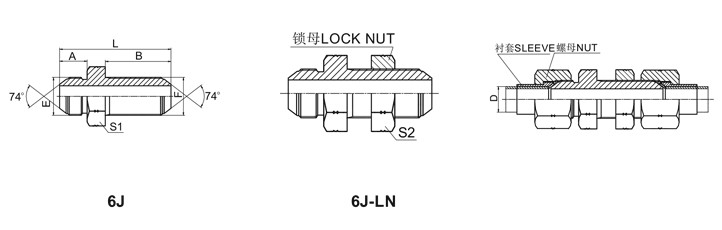

 PART NO.  THREAD   DIMENSIONS
E F A B L S1 S2
6J-02 5/16"X24 5/16"X24 11.4 28.2 47.5 14 14
6J-03 3/8"X24 3/8"X24 12.2 28.2 48.3 16 16
6J-04 7/16"X20 7/16"X20 14 32.5 52.5 17 17
6J-05 1/2"X20 1/2"X20 14 32.5 52.5 19 19
6J-06 9/16"X18 9/16"X18 14.1 32.5 54.5 22 22
6J-06(S19) 9/16"X18 9/16"X18 14.1 32.5 54.5 19 22
6J-08 3/4"X16 3/4"X16 16.7 36.5 61.5 24 24
6J-10 7/8"X14 7/8"X14 19.3 40 69.5 30 30
6J-12 1.1/16"X12 1.1/16"X12 21.9 44.5 78.5 36 36
6J-14 1.3/16"X12 1.3/16"X12 22.6 44.5 79.2 38 38
6J-16 1.5/16"X12 1.5/16"X12 23.1 44.5 79.8 41 41
6J-20 1.5/8"X12 1.5/8"X12 24.3 45.7 84 50 50
6J-24 1.7/8"X12 1.7/8"X12 27.5 46 89.5 55 55
6J-32 2.1/2"X12 2.1/2"X12 33.9 53.1 106.7 70 70

Note: In case if you are interested to order the adapter with lock nut .please insert suffix “LN” after our  partno,forexample 6J-12LN。

Nut and sleeve should be ordered separately,The nut NB200 and sleeeve NB500 is suitable  for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube.
