HYDRAULIC 6F ORFS MALE O-RING BULKHEAD

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials:stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 6F ORFS MALE O-RING BULKHEAD

Model:6F

Send Inquiry

Product Description

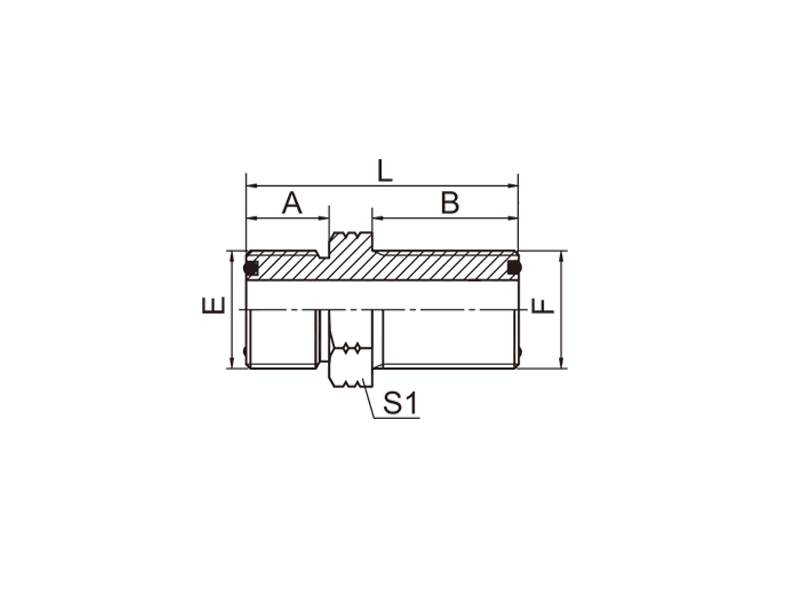

HYDRAULIC 6F ORFS MALE O-RING BULKHEAD


  PART  NO.   THREAD  O-RING     DIMENSIONS
E F E END F END A B L S1 S2
6F-04 9/16"X18 9/16"X18 O011 O011 9.8 31.5 48.2 22 22
6F-06 11/16"X16 11/16"X16 O012 O012 11.2 34 53.2 27 27
6F-08 13/16"X16 13/16"X16 O014 O014 12.8 36.5 58.3 30 30
6F-10 1"X14 1"X14 O016 O016 15.5 40.6 66.6 36 36
6F-12 1.3/16"X12 1.3/16"X12 O018 O018 17 41.7 69.2 38 38
6F-16 1.7/16"X12 1.7/16"X12 O021 O021 17.5 42.2 70.2 46 46
6F-20 1.11/16"X12 1.11/16"X12 O025 O025 17.5 42.2 70.2 50 50
6F-24 2"X12 2"X12 O029 O029 17.5 42.2 70.2 60 60

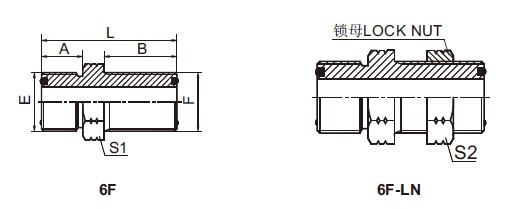

Note: In case if you are interested to order the adapter with lock nut,please insert suffix “LN”after our part no.,for example 6F9-16LN. The lock nut no. is 8F.
