HYDRAULIC 6E METRIC MALE O-RING BULKHEAD

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials:stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 6E METRIC MALE O-RING BULKHEAD

Model:6E

Send Inquiry

Product Description

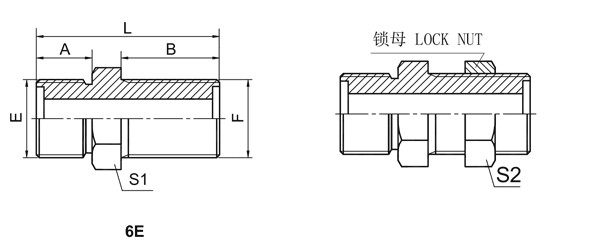

HYDRAULIC  6E METRIC MALE O-RING BULKHEAD



 PART NO.  THREAD  O-RING   DIMENSIONS
E F E F A B L S1 S2
6E-12 M12X1.25 M12X1.25 8X1.9 8X1.9 11 31.5 47.5 17 17
6E-14 M14X1.5 M14X1.5 10X1.9 10X1.9 11 32.5 49.5 19 19
6E-16 M16X1.5 M16X1.5 11X1.9 11X1.9 11 32.5 51.5 22 22
6E-18 M18X1.5 M18X1.5 13X1.9 13X1.9 11 33 52 24 24
6E-22 M22X1.5 M22X1.5 16X2.4 16X2.4 12 35.5 58 27 30
6E-27 M27X1.5 M27X1.5 20X2.4 20X2.4 13 37 61 32 36
6E-30 M30X1.5 M30X1.5 24X2.4 24X2.4 14 38 63 36 41
6E-36 M36X2 M36X2 30X3.1 30X3.1 16 42 71 41 46
6E-39 M39X2 M39X2 32X3.1 32X3.1 18 44 75 46 50
6E-42 M42X2 M42X2 35X3.1 35X3.1 20 46 81 50 50
6E-45 M45X2 M45X2 38X3.1 38X3.1 21 46 81 55 55
6E-52 M52X2 M52X2 40X3.1 40X3.1 22 49 86 60 65
Note:

1  The  parameter  of  O-Ring  is  ring  outside  diameter  and  ring  width.

2  In  case  if  you  are  interested  to  order  the  adapter  with  lock nut,please insert suffix "LN" after our part no.for example 6E-30LN, The lock nut no. is 8C.
