HYDRAULIC 5ON SAE O-RING BOSS L-SERIES ISO 11926-3 / NPT FEMALE
  • Air ProHYDRAULIC 5ON SAE O-RING BOSS L-SERIES ISO 11926-3 / NPT FEMALE

HYDRAULIC 5ON SAE O-RING BOSS L-SERIES ISO 11926-3 / NPT FEMALE

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials:stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 5ON SAE O-RING BOSS L-SERIES ISO 11926-3 / NPT FEMALE

Model:5ON

Send Inquiry

Product Description

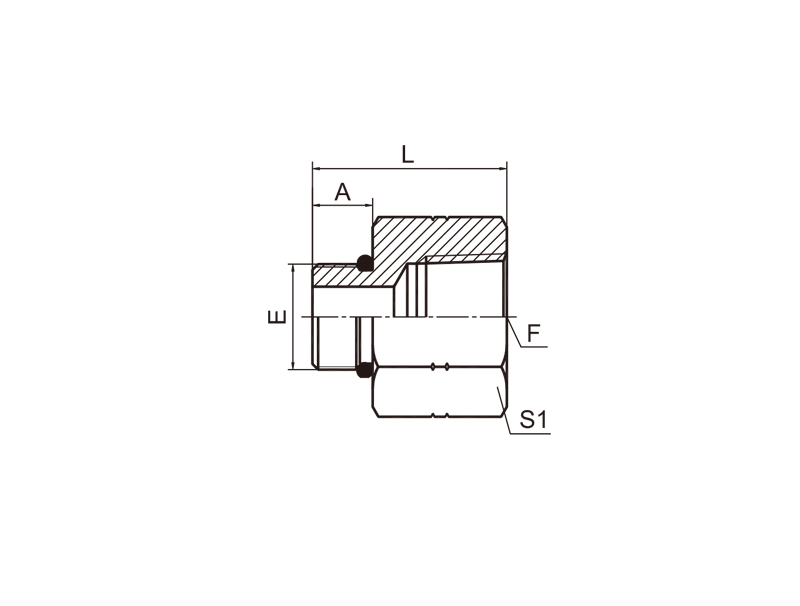

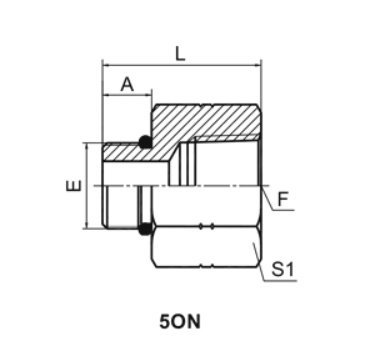

HYDRAULIC 5ON SAE O-RING BOSS L-SERIES ISO 11926-3 / NPT FEMALE




 PART NO.    THREAD  O-RING    DIMENSIONS
E F E END A L S1
5ON-02 5/16"X24 Z1/8"X27 O902 7.54 24.5 17
5ON-02-04 5/16"X24 Z1/4"x18 O902 7.54 29 19
5ON-03-02 3/8"X24 Z1/8"X27 O903 7.54 24.5 17
5ON-03-04 3/8"X24 Z1/4"x18 O903 7.54 29 19
5ON-04-02 7/16"X20 Z1/8"X27 O904 9.1 24.5 17
5ON-04 7/16"X20 Z1/4"x18 O904 9.1 30.5 19
5ON-04-06 7/16"X20 Z3/8"x18 O904 9.1 30.7 24
5ON-05-02 1/2"X20 Z1/8"X27 O905 9.1 26 17
5ON-06-04 9/16"X18 Z1/4"x18 O906 9.9 31.5 19
5ON-08-04 3/4"X16 Z1/4"x18 O908 11.1 32.5 22
5ON-08-06 3/4"X16 Z3/8"x18 O908 11.1 34 22
5ON-08 3/4"X16 Z1/2"X14 O908 11.1 40 30
5ON-08-12 3/4"X16 Z3/4"x14 O908 11.1 40.1 36
5ON-10-08 7/8"X14 Z1/2"x14 O910 12.7 41.5 30
5ON-10-06 7/8"X14 Z3/8"x18 O910 12.7 35.5 27
5ON-10-12 7/8"X14 Z3/4"x14 O910 12.7 41 36
5ON-12-08 1.1/16"X12 Z1/2"x14 O912 15.1 42 32
5ON-12 1.1/16"X12 Z3/4"x14 O912 15.1 45.5 36
5ON-12-16 1.1/16"X12 Z1"X11.5 O912 15.1 50.5 41
5ON-16-12 1.5/16"X12 Z3/4"x14 O916 15.1 43 38
5ON-16 1.5/16"X12 Z1"X11.5 O916 15.1 51.5 41
5ON-20-16 1.5/8"X12 Z1"X11.5 O920 15.1 40 50
5ON-20 1.5/8"X12 Z1.1/4"X11.5 O920 15.1 53.5 50
5ON-24-16 1.7/8"X12 Z1"X11.5 O924 15.1 34 55
5ON-24-20 1.7/8"X12 Z1.1/4"X11.5 O924 15.1 48 55
5ON-24 1.7/8"X12 Z1.1/2"X11.5 O924 15.1 53.5 60
5ON-32 2.1/2"X12 2"X11.5 O932 15.1 50 70

Hot Tags: HYDRAULIC 5ON SAE O-RING BOSS L-SERIES ISO 11926-3 / NPT FEMALE, China, Manufacturer, Supplier, Factory, High quality, Wholesale, Customized, Price
