HYDRAULIC 5JN9 45°JIC MALE 74°CONE/NPT FEMALE
  • Air ProHYDRAULIC 5JN9 45°JIC MALE 74°CONE/NPT FEMALE

HYDRAULIC 5JN9 45°JIC MALE 74°CONE/NPT FEMALE

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials:stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 5JN9 45°JIC MALE 74°CONE/NPT FEMALE

Model:5JN9

Send Inquiry

Product Description

HYDRAULIC  5JN9 45°JIC MALE 74°CONE/NPT FEMALE

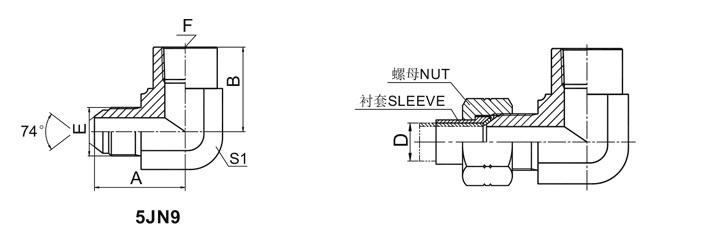

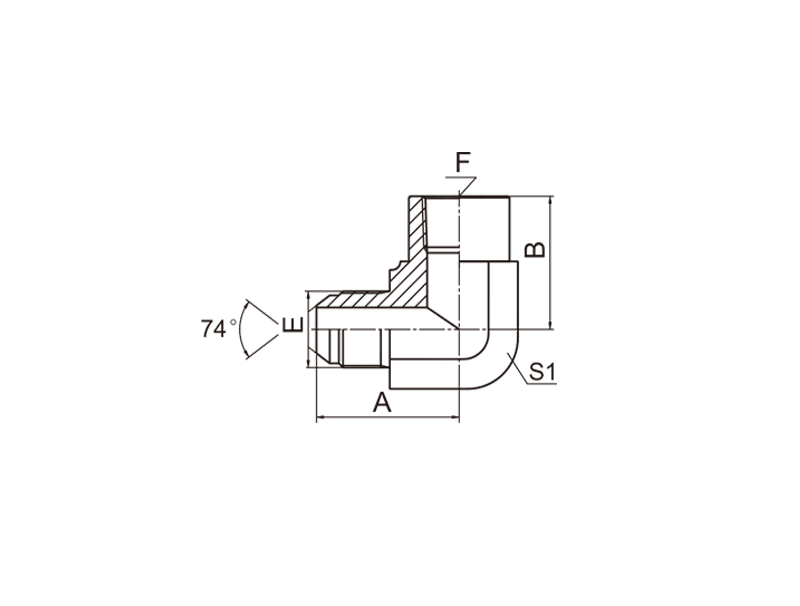

PART NO. THREAD DIMENSIONS
E F A B S1
5JN9-04-02 7/16"X20 Z1/8"X27 27.5 16.8 16
5JN9-04 7/16"X20 Z1/4"X18 30.9 22.4 19
5JN9-06-04 9/16"X18 Z1/4"X18 31.2 22.4 19
5JN9-06 9/16"X18 Z3/8"X18 33.5 25.9 24
5JN9-08-04 3/4"X16 Z1/4"X18 31.6 22.4 19
5JN9-08 3/4"X16 Z1/2"X14 39.5 31.2 30
5JN9-12-08 1.1/16"X12 Z1/2"X14 46 31.2 30
5JN9-12 1.1/16"X12 Z3/4"X14 48 34.5 33
5JN9-12-16 1.1/16"X12 Z1"X11.5 52.5 41.1 41
5JN9-16-12 1.5/16"X12 Z3/4"X14 49 34.5 33
5JN9-16 1.5/16"X12 Z1"X11.5 55.1 41.1 41
5JN9-20 1.5/8"X12 Z1.1/4"X11.5 59.2 43.2 48
5JN9-24 1.7/8"X12 Z1.1/2"X11.5 73.4 52.8 63

Note:Nut and sleeve should be ordered speparately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube.
