HYDRAULIC 5JN4 45°JIC MALE 74°CONE/NPT FEMALE
  • Air ProHYDRAULIC 5JN4 45°JIC MALE 74°CONE/NPT FEMALE

HYDRAULIC 5JN4 45°JIC MALE 74°CONE/NPT FEMALE

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials：stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 5JN4 45°JIC MALE 74°CONE/NPT FEMALE

Model:5JN4

Send Inquiry

Product Description

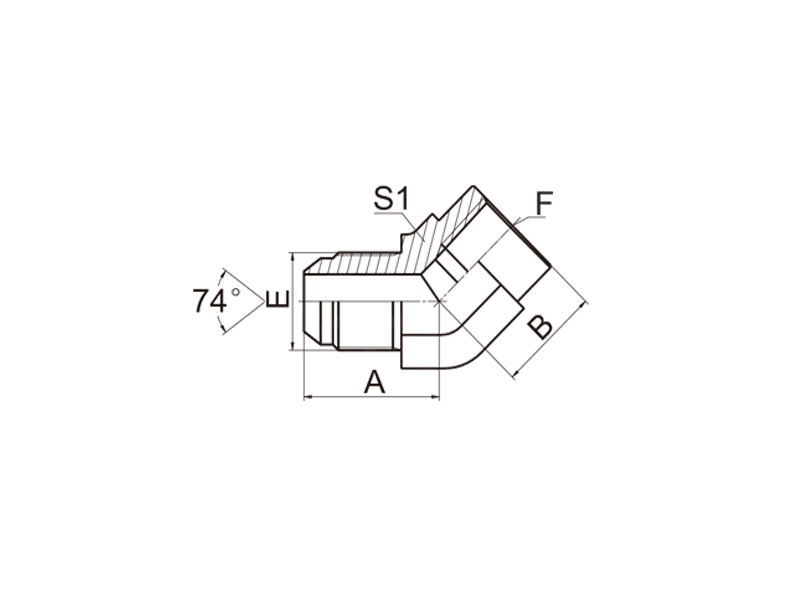

HYDRAULIC 5JN4 45°JIC MALE 74°CONE/NPT FEMALE

PART  NO.   THREAD   DIMENSIONS
E F A B S1
5JN4-04 7/16"X20 Z1/4"X18 23 20 19
5JN4-06-04 9/16"X18 Z1/4"X18 24 20 19
5JN4-06 9/16"X18 Z3/8"X18 26 19 24
5JN4-08-06 3/4"X16 Z3/8"X18 29.5 19 24
5JN4-08 3/4"X16 Z1/2"X14 29.5 28 30
5JN4-10-08 7/8"X14 Z1/2"X14 33 28 30
5JN4-12 1.1/16"X12 Z3/4"X14 37.5 30 33
5JN4-14-12 1.3/16"X12 Z3/4"X14 38 30 33
5JN4-16 1.5/16"X12 Z1"X11.5 42 37.5 41
5JN4-20 1.5/8"X12 Z1.1/4"X11.5 46 30 48
5JN4-24 1.7/8"X12 Z1.1/2"X11.5 58 36 63

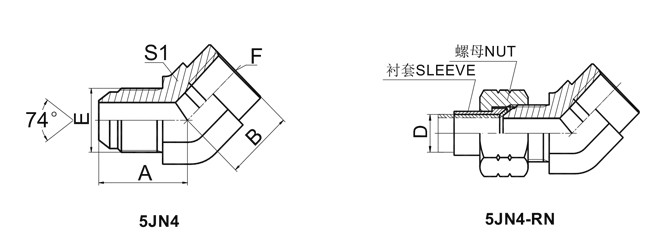

Note:Nut and sleeve should be ordered speparately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube.
