HYDRAULIC 5JN JIC MALE 74° CONE / NPT FEMALE
  • Air ProHYDRAULIC 5JN JIC MALE 74° CONE / NPT FEMALE

HYDRAULIC 5JN JIC MALE 74° CONE / NPT FEMALE

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials：stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 5JN JIC MALE 74° CONE / NPT FEMALE

Model:5JN

Send Inquiry

Product Description

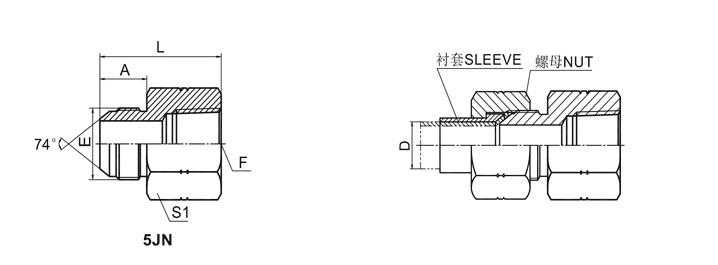

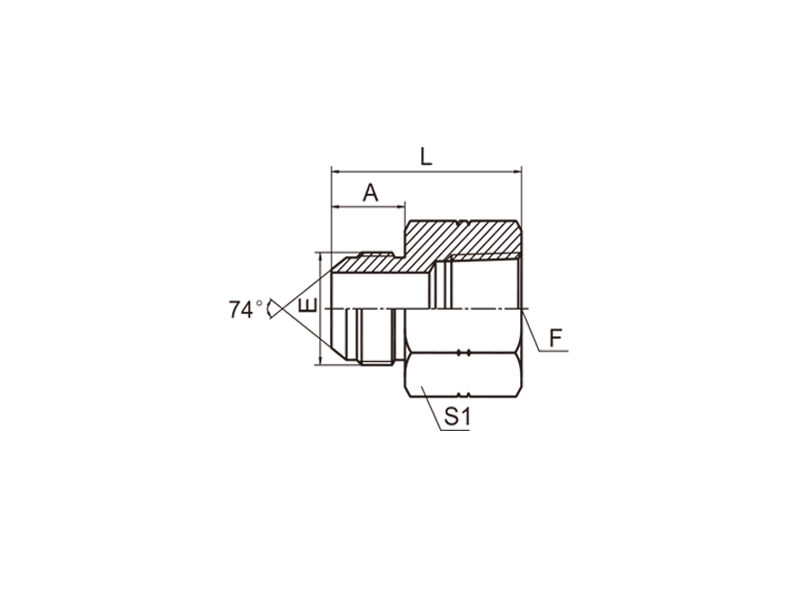

HYDRAULIC 5JN JIC MALE 74° CONE / NPT FEMALE



PART NO.  THREAD    DIMENSIONS
E F A L S1
5JN-04-02 7/16"X20 Z1/8"X27 14 30 17
5JN-04 7/16"X20 Z1/4"X18 14 35.5 19
5JN-05-04 1/2"X20 Z1/4"X18 14 35.3 19
5JN-06-04 9/16"X18 Z1/4"X18 14.1 35.6 19
5JN-06 9/16"X18 Z3/8"X18 14.1 37.1 22
5JN-06-08 9/16"X18 Z1/2"X14 14.1 42.5 30
5JN-08-06 3/4"X16 Z3/8"X18 16.7 39.6 22
5JN-08 3/4"X16 Z1/2"X14 16.7 45.6 30
5JN-08-12 3/4"X16 Z3/4"X14 16.7 45 36
5JN-10-08 7/8"X14 Z1/2"X14 19.3 48 30
5JN-10-12 7/8"X14 Z3/4"X14 19.3 49.7 36
5JN-12-08 1.1/16"X12 Z1/2"X14 21.9 52.1 30
5JN-12 1.1/16"X12 Z3/4"X14 21.9 52.3 36
5JN-16-12 1.5/16"X12 Z3/4"X14 23.1 50 36
5JN-16 1.5/16"X12 Z1"X11.5 23.1 59.7 41
5JN-20 1.5/8"X12 Z1.1/4"X11.5 24.3 61.5 50
5JN-24 1.7/8"X12 Z1.1/2"X11.5 27.5 62.5 60
5JN-32 2.1/2"X12 Z2"X11.5 33.9 70 70

Note: Nut and sleeve should be ordered speparately.The nut NB200 and sleeve NB500 is suitable tor metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube.
